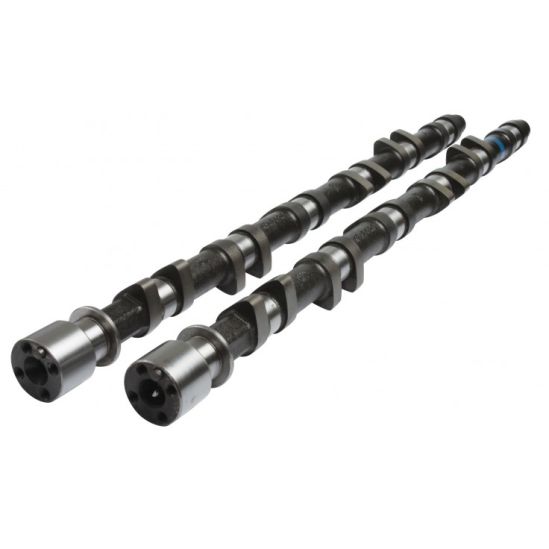

Kelford Cams Nissan RB26DET 272 (182-C)
Description:
272/272 Degrees advertised duration, 10.00mm/9.95mm lift.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Additional Information
272 Degree performance cams delivering low-end power and fast spool-up.
 |
|||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | RB26DETT | 182-C | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 10.25mm | Exhaust: | 10.25mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 10.00mm | Exhaust: | 9.95mm | |||
| Advertised Duration @ | 0.35mm | Intake: | 272 | Exhaust: | 272 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 234 | Exhaust: | 234 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 7 BTDC | EVO: | 53 BBDC | ||
| IVC: | 47 ABDC | EVC: | 1 ATDC | ||||
| Suggested Centre Lines: | Intake: | 110 | Exhaust: | 116 | |||
| VALVE | Lift @ TDC | Intake: | 1.73mm | Exhaust: | 1.05 | ||
| Product Name | Kelford Cams Nissan RB26DET 272 (182-C) |
|---|---|
| Brands | Kelford |
| Engine | RB26 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Why choose matched valve springs for performance cams?
Spring pressure must match the cam profile and rpm limit. Too little causes valve float; too much causes wear.
Do I need adjustable cam gears?
They allow fine-tuning of cam timing, especially useful after head machining or when running non-standard cams.
What is the recommended valve clearance for the Kelford Cams 182-C on an RB26DETT?
For the Kelford Cams 182-C, the recommended valve clearance is 0.25mm for the intake valves and 0.30mm for the exhaust valves. These clearances should be set cold at the cam.
What is the lift specification for the Kelford Cams 182-C?
The Kelford Cams 182-C features a lift of 10.00mm for the intake valves and 9.95mm for the exhaust valves. This lift is designed to enhance performance across the RPM range.
What are the timing specifications for the Kelford Cams 182-C?
The timing specifications for the Kelford Cams 182-C at 1.00mm valve lift are 7 degrees BTDC for intake valve opening and 53 degrees BBDC for exhaust valve closing. Proper timing alignment is crucial for optimal performance.
What is the expected power band for the Kelford Cams 182-C?
The Kelford Cams 182-C is designed to deliver improved low-end power and faster spool-up, making it suitable for applications where quick throttle response is desired. However, actual performance will depend on tuning, supporting modifications, and engine setup.
What should I consider when installing the Kelford Cams 182-C?
When installing the Kelford Cams 182-C, ensure that the camshaft timing is set accurately and that the valve clearances are within the specified range. Additionally, consider using matched valve springs to handle the increased lift and duration effectively.
