Spool Nissan SR20 Stroker Crankshaft

USD$1,590.91
In stock
SKU
SPL-SR20-Crank
+ -

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

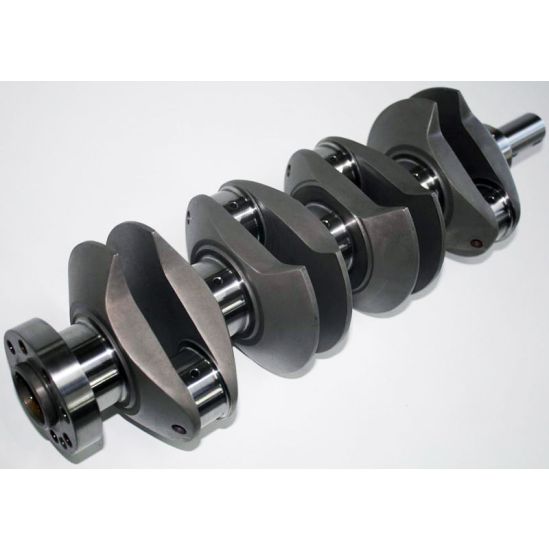

Nissan SR20DET 91mm Billet 4340 Stroker Crankshaft - Rated at 1000hp and 10,000rpm

This is a true billet crankshaft machined from Billet 4340 core stock (not a cast forging blank that is final machined).

Each crank is machined from core stock 4340 on a CNC machine, then Nitrided and final ground.

Rated at 1000HP plus

With the increased cubic capacity from the 91mmstroker crank, big increases in torque and low to mid range power are achievable. Boost will come on earlier in the rev range and peak power will increase.

The SR20DET engine in its factory form has a 86mm bore and 86mm stroke, giving a displacement of 1998cc.

Using the 91 mm stroker crank, std length Conrods and Custom Pistons, the displacement is increased as follows:

  • 86.5mm bore and the 91 mm stroker crank = 2139cc / 110cc increase
  • 87 mm bore and the 91 mm stroker crank = 2164cc / 133cc increase
  • 90mm bore ( sleeved ) = 2316cc / 318cc increase
  • Crank Weighs 18kg
  • 4340 Grade Billet Steel
  • Fully Counter Weighted
  • Nitrided Finish
  • Fully Balanced
  • Stroke 91mm
More Information
Product Name Spool Nissan SR20 Stroker Crankshaft
Brands Spool
Engine SR20
Make Nissan
