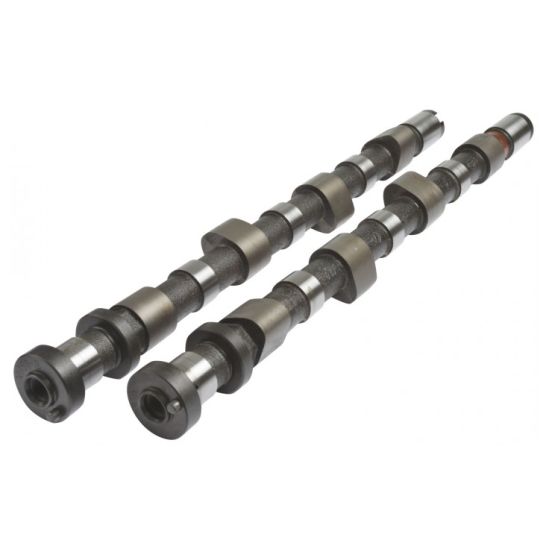

Kelford Cams- suit Nissan SR20-DET NVCS S14 - S15
Description:
268/272 Degrees advertised duration, 12.00mm/11.50mm lift.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Additional Information:
Ultimate drift spec cams featuring maximum lobe area and low duration for fast spool and lots of top end power. Requires KVS93 or KVS93-BT valve springs if using over 2 bar boost.
 |
|||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | SR20DE/T S14 & S15 NVCS | V-188-B | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 7.74mm | Exhaust: | 7.42mm | |||
| Rocker Ratio: | Intake: | 1.55 | Exhaust: | 1.55 | |||
| Nett Valve Lift: | Intake: | 12.00mm | Exhaust: | 11.50mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 268 | Exhaust: | 272 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 226 | Exhaust: | 230 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 19 ATDC | EVO: | 50 BBDC | ||
| IVC: | 65 ABDC | EVC: | 0 TDC | ||||
| Suggested Centre Lines: | Intake: | 132 | Exhaust: | 115 | |||
| VALVE | Lift @ TDC | Intake: | 0.05mm | Exhaust: | 1.06 | ||
| Product Name | Kelford Cams- suit Nissan SR20-DET NVCS S14 - S15 |
|---|---|
| Brands | Spool |
| Engine | SR20 |
| Make | Nissan |
