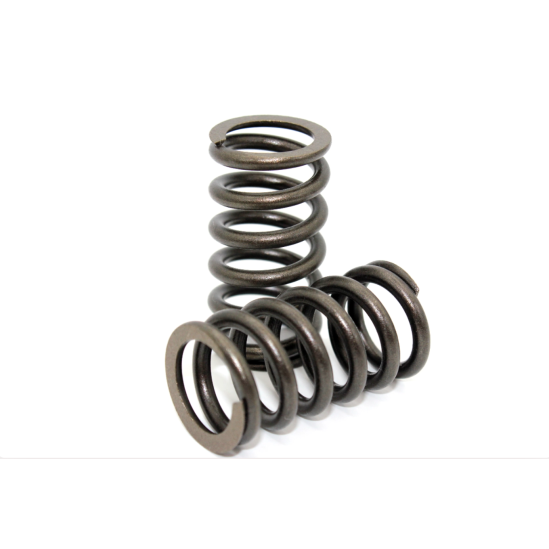

Performance Springs Holden Buick OHV V6 VR Single Valve Springs – PS H10010

Performance Springs PS H10010 Single Valve Springs are designed for Holden Buick OHV V6 VR engines.

These performance single valve springs are designed to improve valve train control in performance Holden Buick OHV V6 VR applications. The springs are suitable for applications with up to 0.550" maximum valve lift.

The PS H10010 features a 32.1 mm outside diameter and 18 mm inside diameter, with spring pressure specified at 100 lb at 41.3 mm and 240 lb at 27.9 mm.

The supplier specifies standard (STD) retainers for this application.

A complete engine requires 12 valve springs.

Product Specifications:

• Engine: Buick OHV V6 VR
• Spring Type: Single
• Maximum Valve Lift: 0.550"
• Retainers: Standard (STD)
• Outside Diameter: 32.1 mm
• Inside Diameter: 18 mm
• Pressure @ 41.3 mm: 100 lb
• Pressure @ 27.9 mm: 240 lb

What's Included:

• 12 × Performance Springs PS H10010 Single Valve Springs

Performance Valve Springs specifies PS H10010 for the Holden Buick OHV V6 VR application. The supplier's ordering system specifies the required quantity for the engine. (performancesprings.com.au)

Important: Always verify valve lift, installed height, spring dimensions, pressures, coil bind clearance, retainer compatibility and application suitability before installation. Performance Valve Springs states that valve spring pressure specifications have an approximate ±8% tolerance. The installer is responsible for checking and rechecking all dimensions, pressures, applications and specifications before, during and after installation.
