Haltech NEXUS R5 + Universal Wire-in Harness Kit Length: 2.5m (8')
Suits: Racing application where advanced race features, data logging and power management control is required.
Includes: NEXUS R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap. Plug and pin set: AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4. NEXUS R5 universal engine wiring harness, fire wall grommet 2.5in (63.5mm).
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
<div class="mt-3 mb-2"><strong>ECU OVERVIEW</strong></div>

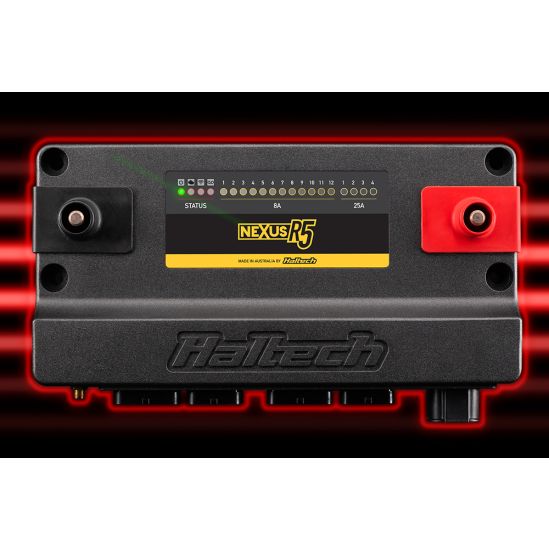

<div>The Nexus R5 is Haltech's flagship product, seamlessly integrating the functions of a power distribution module, data logger, dual-channel wideband controller, and advanced engine management system into a single, powerful unit we call a Vehicle Control Unit (VCU).</div>
<ul>
<li><strong>4 x 25A (continuous) push-pull PWM capable outputs</strong> (5 kHz) for powering injectors, coils, transbrakes, thermofan, and fuel pump</li>
<li><strong>12 x 8A (continuous) high side outputs</strong> (low-speed PWM, 200 Hz) for sensors, NOS solenoids, and more</li>
<li><strong>18 x peak/hold injector drivers</strong> (can be used as low side drive outputs)</li>
<li><strong>12 x low current ignition outputs</strong> (can be used as low side drive outputs)</li>
<li><strong>8 x low side drive outputs</strong>, PWM capable (DPOs)</li>
<li><strong>4 x push-pull / H-bridge outputs</strong> (8A, PWM capable), suitable for electronic throttle control</li>
<li><strong>23 x 0-5V analog inputs</strong> with redundancy for electronic throttle, plus switchable 5V pullup</li>
<li><strong>Trigger and home inputs</strong> with differential inputs, adjustable thresholds, and glitch filters</li>
<li><strong>10 x synchronous pulsed inputs</strong> (zero crossing or adjustable thresholds) for cam sensors, frequency inputs, or 0-5V analog inputs</li>
<li><strong>2 x onboard wideband controllers</strong>, compatible with NTK and LSU4.9 sensors</li>
<li><strong>3 x CAN ports</strong> with switchable termination for versatile connectivity</li>
</ul>
<div class="mt-3 mb-2"><strong>HARNESS OVERVIEW</strong></div>
<div>The Universal Wire-in Harness is designed for dedicated race cars, engine swaps, and custom wiring projects. One end features VCU connectors, while the other end has unterminated wires that are color-coded and clearly labeled for an easy installation process. Connect your Haltech VCU to the terminated end, follow the included wiring diagram, load your base map, and you're ready to go!</div>
<ul>
<li><strong>Color-coded and labeled wires</strong> that align with the detailed wiring diagram for a confusion-free installation process</li>
<li>The wiring diagram is paired with the full VCU manual and software, available via USB or downloadable from the Haltech website</li>
</ul>
