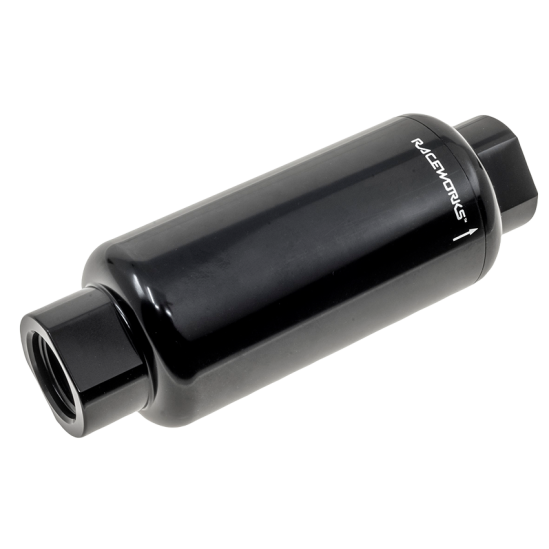

Raceworks AN-10 Black Billet Fuel Filter 40 Micron ALY-077-40BK
Black 40 micron inline fuel filter with washable stainless element and AN-10 ORB ports, suited to post-pump filtration.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
The Raceworks ALY-077-40BK inline filter uses a washable stainless steel 40 micron element in a black billet housing. Raceworks recommends 40 micron filtration after the pump and before the injectors; install this directional filter according to its flow marking.
Specifications
| Ports | AN-10 ORB (fittings selected separately) |
|---|---|
| Element | 40 micron washable stainless steel; E85 safe |
| Rated flow | Up to 1800L/h at 3 bar with 2psi pressure drop |
| Housing | 50mm diameter; 110mm body length; 140mm overall length excluding male fittings |
| Filtration area | 374cm² |
| Product weight | Not stated by manufacturer |
Confirm flow direction, fuel system layout and compatible AN-10 ORB fittings before fitting. For pre-pump filtration, Raceworks recommends a coarser 75 or 100 micron element.
| Product Name | Raceworks AN-10 Black Billet Fuel Filter 40 Micron ALY-077-40BK |
|---|---|
| Brands | Raceworks |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Where should the 40 micron filter be fitted?
Raceworks recommends 40 or 10 micron filtration after the pump, before the injectors; 75 or 100 micron elements are recommended before the pump.
Can the element be cleaned?
Yes. The stainless steel element is washable.
Are AN-10 male fittings included?
The housing has AN-10 ORB ports. Its stated 140mm length excludes male fittings; select suitable fittings for your plumbing.
-
-
-
-
