Raceworks 32mm Radiator Hose Coolant Temperature Sensor Adapter - ALY-214-32MM

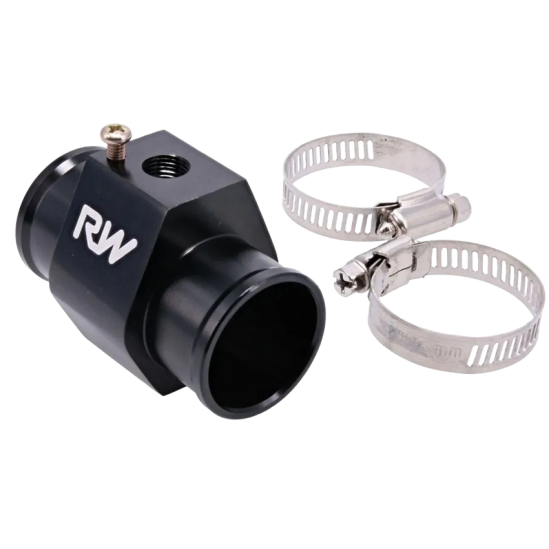

The Raceworks ALY-214-32MM provides a convenient mounting point for a coolant temperature sender in a 32 mm radiator hose. It is designed for Raceworks electronic gauges but can also be used with other compatible sensors that use a 1/8-inch NPT thread.
The black aluminium adapter installs inline by cutting a suitable straight section of radiator hose and securing the hose ends to either side of the adapter. This allows an aftermarket gauge or data-logging system to measure coolant temperature without requiring a threaded port in the radiator or engine.
Features
- Suits 32 mm internal-diameter radiator hose
- 1/8-inch NPT female sensor port
- Black aluminium construction
- Inline radiator-hose installation
- Suitable for Raceworks gauges and other compatible 1/8-inch NPT senders
- Universal application
- Raceworks two-year product warranty
Specifications
| Part number | ALY-214-32MM |
|---|---|
| EAN | 9341554189812 |
| Hose size | 32 mm internal diameter |
| Sensor thread | 1/8-inch NPT female |
| Colour | Black |
| Product weight | 0.1 kg |
| Fitment | Universal |
Installation Notes
Confirm the radiator hose's internal diameter before ordering; this version is specifically sized for 32 mm hose. Install it in a straight section with adequate clearance, orient the sender and earth screw appropriately, and thoroughly bleed and leak-test the cooling system after installation.
The product listing is for the hose adapter. A coolant temperature sensor or gauge is not specified as included and should be selected separately with a compatible 1/8-inch NPT thread.
| Product Name | Raceworks 32mm Radiator Hose Coolant Temperature Sensor Adapter - 1/8 NPT Black |
|---|---|
| Brands | Raceworks |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What radiator hose size does ALY-214-32MM suit?
It is designed for radiator hose with a 32 mm internal diameter. Measure the hose bore rather than its outside diameter before ordering.
What thread does the temperature-sensor port use?
The adapter has a 1/8-inch NPT female port for a compatible coolant temperature sender.
Does this adapter only work with Raceworks gauges?
No. It was developed for Raceworks electronic gauges but can be used with another suitable sender that has a compatible 1/8-inch NPT thread.
Is the coolant temperature sensor included?
The source identifies this product as the hose adapter and does not specify a sensor or gauge as included. Select a compatible 1/8-inch NPT sender separately.
Is this a vehicle-specific adapter?
No. It is universal, but the vehicle must use a suitable 32 mm radiator hose with enough straight length and clearance for installation.
