Raceworks 0.6L Round Power Steering Reservoir - Black
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

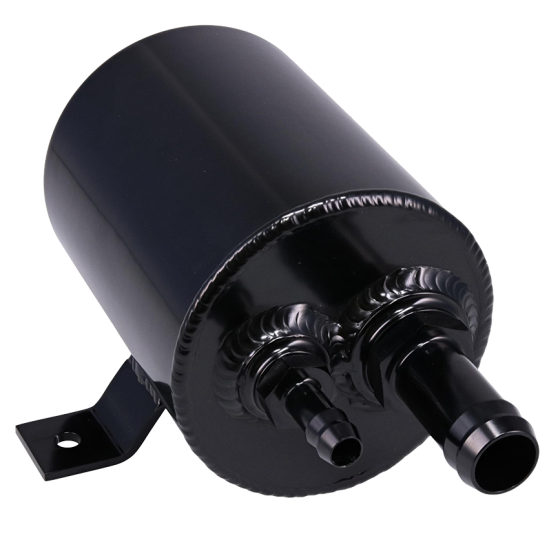

Raceworks 0.6L Round Power Steering Reservoir - ALY-220BK
The Raceworks ALY-220BK is a compact, universal power steering reservoir designed for performance vehicles, engine conversions and custom hydraulic-steering installations. Its internally baffled construction helps control fluid movement and reduce aeration, supporting more consistent power steering operation under demanding conditions.
The reservoir is robot-welded from 5052 aluminium and finished in black for a clean, durable appearance. AN-6 ORB and AN-10 ORB ports provide flexible plumbing options, while the supplied barb adapters make it suitable for conventional power steering hose layouts.
Features
- 0.6 litre capacity
- Internally baffled design
- Robot-welded 5052 aluminium construction
- Black finish
- Billet screw-on cap
- AN-6 ORB and AN-10 ORB ports
- Includes 3/8-inch and 3/4-inch barb adapters
- Integrated mounting bracket
- Universal fitment for custom power steering systems
Specifications
| Part number | ALY-220BK |
|---|---|
| Capacity | 0.6 litres |
| Body height | 116 mm |
| Body diameter | 89 mm |
| Overall height with barb adapters | 194 mm |
| Tank bracket width | 131.5 mm |
| Mounting bolt-hole spacing | 109 mm |
| Ports | AN-6 ORB and AN-10 ORB |
| Material | 5052 aluminium |
| Fitment | Universal |
What's Included
- Raceworks round power steering reservoir
- Billet screw-on cap
- AN-10 to 3/4-inch barb adapter
- AN-6 to 3/8-inch barb adapter
This is a universal component rather than a vehicle-specific direct-fit replacement. Confirm mounting clearance, hose sizes and system plumbing before installation.
| Product Name | Raceworks 0.6L Round Power Steering Reservoir - Black |
|---|---|
| Brands | Raceworks |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is the capacity of the Raceworks ALY-220BK reservoir?
Raceworks' current manufacturer specification lists a 0.6 litre capacity.
What ports are fitted to ALY-220BK?
The reservoir has AN-6 ORB and AN-10 ORB ports and includes 3/8-inch and 3/4-inch barb adapters.
Is this power steering reservoir internally baffled?
Yes. ALY-220BK uses an internal baffle to help manage fluid movement and aeration in performance applications.
Is ALY-220BK a direct-fit vehicle-specific reservoir?
No. It is a universal reservoir. Check available mounting space, bracket position, hose routing and port requirements before ordering.
What are the mounting dimensions?
The tank bracket is 131.5 mm wide with 109 mm mounting-bolt hole spacing. Overall height with the supplied barb adapters is 194 mm.
