Ford EL / EF SOHC 4.0L Rebuild kit with Spool H Beam Conrods and Ross Forged Pistons
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Spool EL / EF SOHC 4.0 Litre Ford con rods and custom Ross Racing pistons are now available. This combination uses SPOOL EL / EF H beam con rods with a custom piston.
These are a custom piston made for us and rated at 1000hp by Ross Racing Pistons. The pistons come standard with a 0.200" (5mm) Tool steel 52100 gudgeon pin.

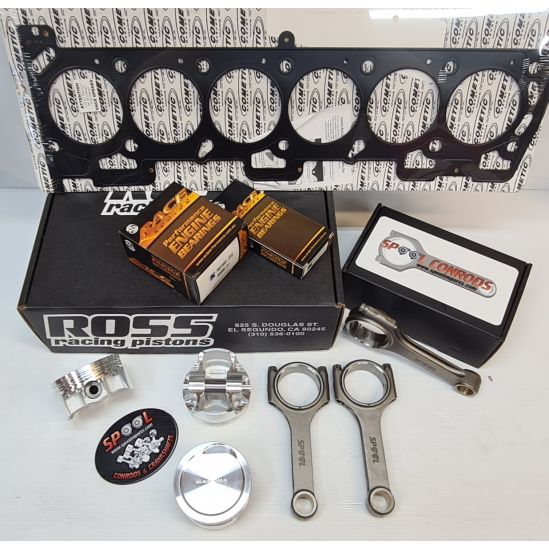

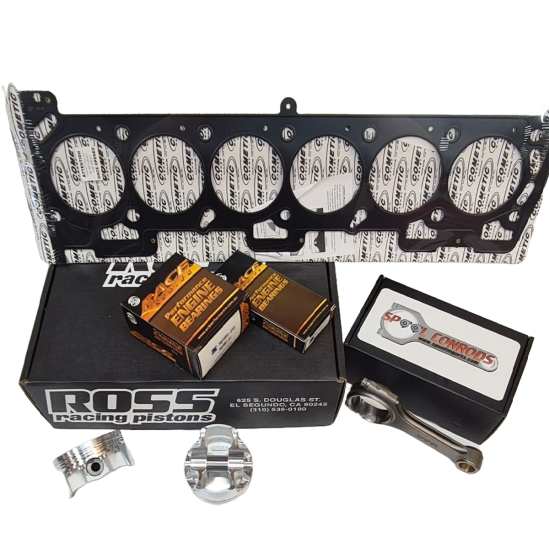

This Rebuild Kit includes the following quality parts:
- Spool Forged H Beam Conrods
- Ross Racing Forged Pistons (Rings, Pins and Locks Included)
- Cometic MLS Head Gasket
- ACL Race Series
- ACL Race Series
Pistons are available in:
- Compression Ratios: 8.5:1 / 9:1
- Bore Sizes: +0.5mm and +1mm
- Pistons come with rings, gudgeon pins and pin locks
- Forged 2618
Ross Racing Pistons:
All of Ross Racing Pistons (since 1985) have been forged from 2618 billet bar stock and have been heat treated and aged to a T61 condition (2618-T61). 2618-T61 is the material that is used when fatigue resistance and durability are of prime importance by all premium racing piston manufacturers.
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
| Product Name | Ford EL / EF SOHC 4.0L Rebuild kit with Spool H Beam Conrods and Ross Forged Pistons |
|---|---|
| Brands | Spool |
| Engine | 4.0L Inline 6 |
| Make | Ford |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What are the recommended bore clearances for the Ross forged pistons in this rebuild kit?
The recommended bore clearance for the Ross forged pistons typically ranges from 0.0015" to 0.0025" depending on the application and operating conditions. It's crucial to consult with your engine builder to determine the best clearance for your specific setup.
What compression ratio options are available with the Ross pistons in this kit?
This rebuild kit offers Ross pistons with compression ratios of 8.5:1 and 9:1. The choice of compression ratio will depend on your intended use, fuel quality, and tuning strategy.
What are the torque specifications for the ARP2000 bolts included with the Spool conrods?
The ARP2000 bolts included with the Spool H Beam conrods should be torqued to approximately 55 ft-lb when using ARP Ultra-Torque lubricant. Always refer to ARP's latest instructions for the most accurate specifications.
Do the conrods require any specific machining before installation?
Yes, the Spool H Beam conrods may require big-end or small-end honing to ensure proper fitment due to factory journal and pin size variations. It's essential to check clearances and perform any necessary machining before installation.
What type of head gasket is included in this rebuild kit?
The rebuild kit includes a Cometic MLS (Multi-Layer Steel) head gasket, which is designed for high-performance applications. Ensure that the cylinder head and block surfaces have the correct RA surface finish for optimal sealing.
