Performance Springs Ford Barra XR6 4.0L 24V PACALOY Beehive Valve Spring & Titanium Retainer Kit
PACALOY™ ovate beehive valve spring and titanium retainer kit for Ford Barra 4.0L 24-valve engines. Designed to improve valve control and reduce valvetrain mass in performance applications.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
This PVS Single PACALOY™ Ovate Beehive Valve Spring and Titanium Retainer Kit is designed specifically for the Ford Barra 4.0L 24-valve inline-six engine, delivering improved valvetrain stability, reduced mass, and reliable control for performance street and motorsport builds.
Manufactured in the USA, these PACALOY™ beehive valve springs use an ovate single-spring design to minimise harmonic resonance while maintaining consistent spring pressure throughout the lift range. Compared to conventional valve spring setups, the beehive configuration reduces valvetrain inertia, improving high-RPM stability and overall valve control.
The included titanium retainers further reduce reciprocating mass, helping the valvetrain track aggressive cam profiles more accurately. Installed pressures are optimised for performance camshaft use while maintaining durability for high-boost and naturally aspirated Barra combinations.
This kit is ideal for Barra builds requiring improved valve control without excessive spring pressure, making it suitable for street, drag, and circuit applications.
Key Features
-
PACALOY™ ovate beehive valve spring design
-
Manufactured in the USA
-
Improved valve control and reduced harmonic instability
-
Lightweight titanium retainers included
-
Single spring configuration for reduced valvetrain mass
-
Suitable for performance camshaft applications
Spring Specifications
-
Installed Height: 1.470”
-
Seat Pressure: 95 lbs
-
Pressure @ 0.500” Lift: 235 lbs
-
Coil Bind Height: 0.895” (22.7mm)

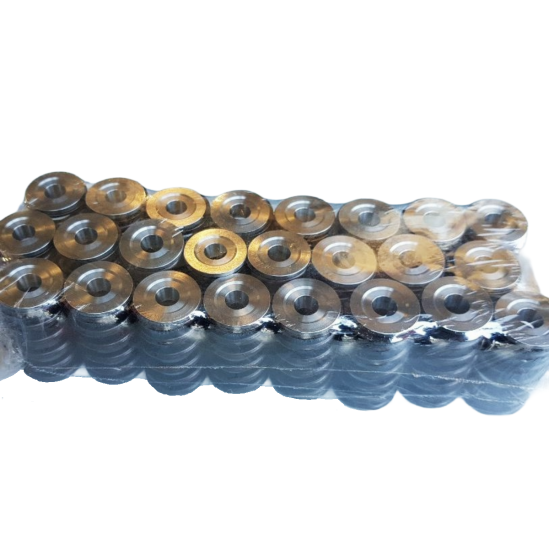

Kit Contents
-
24 × PVS single PACALOY™ beehive valve springs
-
24 × Titanium valve spring retainers
Engine Compatibility
-
Ford Barra 4.0L Inline-6
-
Valvetrain: 24-Valve DOHC
| Product Name | Performance Springs Ford Barra XR6 4.0L 24V PACALOY Beehive Valve Spring & Titanium Retainer Kit |
|---|---|
| Brands | Performance Springs |
| Engine | Barra XR6 |
| Make | Ford |
