Carrillo Conrods for 4 cyl Nissan KA24 Pro-H 3/8 Bolt ( DA-KA24>-66496H )
Carrillo Alloy Nissan RB30 Conrods
Please Note: These conrods use a 22mm pin
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

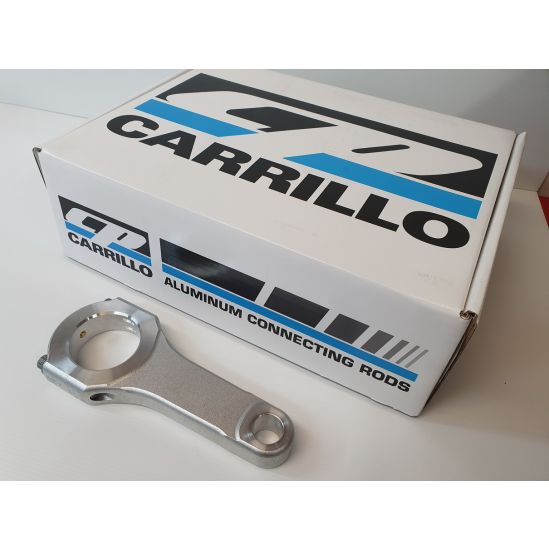

Carrillo Alloy Nissan RB30 Conrods
Upgrade your Nissan RB30 engine with the high-performance Carrillo Alloy Conrods, designed for maximum durability and efficiency. These conrods are engineered to meet the demands of high horsepower applications, ensuring your engine performs at its best.
Key Features:
- Utilizes a 22mm pin for optimal fit and performance.
- Available off the shelf for immediate installation.
- Constructed from fully machined forgings for superior strength.
- Equipped with WMC H11 Tool Steel Fasteners for enhanced reliability.
- Floating bolt washers ensure consistent bolt stretch.
- Precision balanced to within ±1 gram for smooth operation.
- Manufactured in the USA, ensuring top-notch quality.
- Capable of handling up to 3000 horsepower per set.
Choose Carrillo Alloy Nissan RB30 Conrods for a robust and reliable upgrade to your engine's performance.
| Product Name | Carrillo Alloy Nissan RB30 Conrods |
|---|---|
| Brands | CP Carrillo |
| Engine | RB30 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use ARP conrod bolts, usually ARP2000 as standard with L19 or CA625+ available on some models. ARP2000 bolts are generally torqued to around 55 ft-lb for 3/8 inch and around 75 ft-lb for 7/16 inch when using ARP Ultra-Torque lube. L19 bolts must be tightened by stretch, not torque. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
What machining is required for the Carrillo Alloy RB30 conrods?
The Carrillo Alloy RB30 conrods may require big-end or small-end honing to ensure proper fitment, as factory journal and pin sizes can vary. It's crucial to check clearances and ensure the conrods fit correctly within your engine.
What is the recommended installation procedure for the Carrillo Alloy RB30 conrods?
When installing the Carrillo Alloy RB30 conrods, ensure that the conrods are properly aligned and that the bolts are torqued or stretched according to ARP specifications. Follow the latest ARP instructions for the specific fasteners used.
Can the Carrillo Alloy RB30 conrods handle high RPM applications?
Yes, the Carrillo Alloy RB30 conrods are designed for high-performance applications and can handle significant RPMs. However, reliability will depend on proper machining, clearances, and tuning specific to your engine setup.
What are the benefits of using WMC H11 Tool Steel Fasteners in these conrods?
WMC H11 Tool Steel Fasteners provide enhanced reliability and strength, which is critical in high horsepower applications. They help maintain consistent bolt stretch, ensuring the conrods perform optimally under stress.
Is there a specific torque specification for the bolts used in the Carrillo Alloy RB30 conrods?
The torque specifications for the bolts used in the Carrillo Alloy RB30 conrods will depend on the type of fasteners installed. Always refer to ARP's latest instructions for the correct torque values or stretch measurements for your specific bolts.
