Spool Billet Cutter Hose End Fitting - AN-10 - straight
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
SPOOL CUTTER STYLE HOSE END

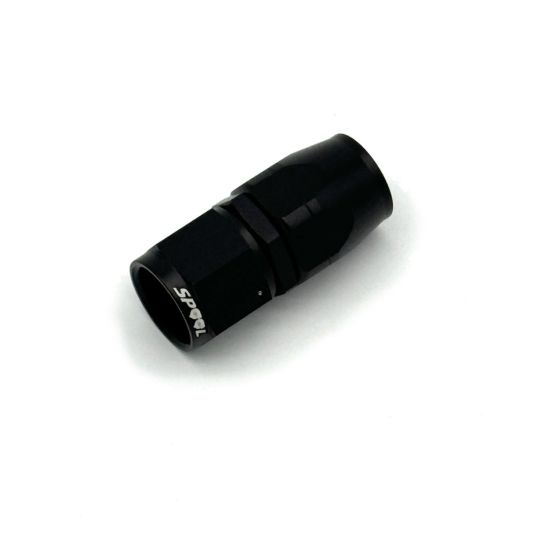

Spool Cutter Style Hose End - STR - AN-10 - Straight
Spool's billet cutter end is engineered to separate the wire braid for maximum hose retention, sealing the hose for a second time. This design provides a greater sealing area for enhanced strength and easier assembly. All angles are mandrel bent, eliminating sharp changes in direction for optimum flow. The fittings feature a swivel head for easy adjustment, making them an excellent choice for automotive enthusiasts in fuel systems, cooling systems, vacuum applications, and oil systems.
All Spool fittings are crafted from lightweight 6061-T6 aluminum and MilSpec Type anodized in black for superior durability.
Features and Benefits:
- Straight fitting in industry standard AN / JIC flared 37-degree sealing surface
- Compatible with all standard AN braided hose
- Redundant FKM O-rings compatible with fuel (including racing fuels, ethanol-based fuels (E85+), diesels/bio-diesels, and ethanol/gasoline mixtures), engine oil, gear oil, transmission fluid, coolants, water, air, and vacuum
- Unique left-hand threaded socket
- Stainless steel lock rings
- Reusable
- Easy to assemble
- Lightweight 6061-T6 aluminum construction
- MilSpec Type black anodized for durability
| Product Name | Spool Billet Cutter Hose End Fitting - AN-10 - straight |
|---|---|
| Brands | Spool |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is the difference between nylon and stainless braided hose?
Nylon braided hose is lighter and easier to work with. Stainless is more abrasion-resistant and suited to harsher environments.
How do I correctly assemble AN hose ends?
Cut the hose square, clean debris, and follow the fitting manufacturer’s assembly instructions carefully to avoid leaks.
What applications are suitable for the Spool Billet Cutter Hose End Fitting - AN-10?
The Spool Billet Cutter Hose End Fitting - AN-10 is ideal for use in fuel systems, cooling systems, vacuum applications, and oil systems. Its robust design and compatibility with standard AN braided hose make it versatile for various automotive applications.
What materials are used in the construction of this hose end fitting?
This hose end fitting is made from lightweight 6061-T6 aluminium, which is known for its strength and durability. It is also MilSpec Type anodized in black to enhance its resistance to wear and corrosion.
Are the O-rings in the Spool AN-10 fitting compatible with various fluids?
Yes, the redundant FKM O-rings in the Spool AN-10 fitting are compatible with a wide range of fluids including racing fuels, ethanol-based fuels (E85+), diesel, engine oil, gear oil, transmission fluid, coolants, water, air, and vacuum applications.
How does the design of the Spool Billet Cutter Hose End improve hose retention?
The unique cutter style design of the Spool Billet Hose End separates the wire braid of the hose, providing a greater sealing area and ensuring maximum hose retention. This design allows for a more secure connection and reduces the risk of leaks.
Can the Spool AN-10 fitting be reused after disassembly?
Yes, the Spool Billet Cutter Hose End Fitting - AN-10 is designed to be reusable. Its construction allows for easy assembly and disassembly, making it convenient for adjustments or maintenance.
-
