Turbosmart FPR8 Fuel Pressure Regulator Suit -8AN (Black)
Turbosmart FPR6 Fuel Pressure Regulator Suit -6AN (Black)
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

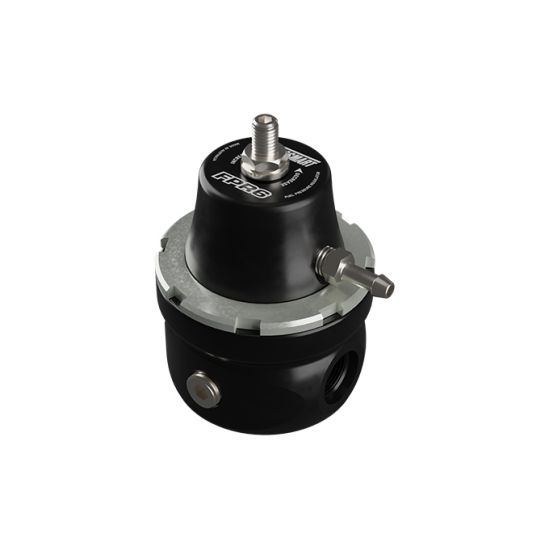

The Turbosmart FPR6 Series provides market-leading fuel control and response via true 1:1 ratio and superior flow and bypass capacity for vehicles with -6 / 6AN fuel systems. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm the FPR6 Series is suitable for all Fuel types including Race Fuel and aggressive leaded fuels. Our FPR6 Range includes 6AN inlet and outlet and return fittings and is Available in Standard (35psi to 80psi) as well as LP (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 1200HP systems.
Features
Stainless Steel Valve Seat
Suitable for all fuel types
1:1 Class Leading Ratio & Response
Adjustable Pressure
1/8 NPT Pressure Sensor Port
Unique Locking Collar Design
Milspec Diaphragm
Detailed Specific Fuel Flow Data & Spec
FPR6 Series available in:
Limited Eddition (Platinum) TS-0404-1026
Blue) TS-0404-1021
(Black) TS-0404-1022
(Purple) TS-0404-1023
(Red) TS-0404-1024
(Blue) TS-0404-1022
| Product Name | Turbosmart FPR6 Fuel Pressure Regulator Suit -6AN (Black) |
|---|---|
| Brands | Turbosmart |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
How do I size injectors for my build?
Injector size depends on horsepower, fuel type and cylinder count. E85 needs larger injectors than pump fuel.
When is a surge tank needed?
High power, track use or drifting often require a surge tank to prevent fuel starvation.
What is the maximum pressure range for the Turbosmart FPR6 Fuel Pressure Regulator TS-0404-1022?
The Turbosmart FPR6 Fuel Pressure Regulator TS-0404-1022 has an adjustable pressure range from 35 psi to 80 psi, making it suitable for high-performance applications.
Is the FPR6 suitable for use with leaded race fuels?
Yes, the Turbosmart FPR6 is designed with a stainless steel valve seat and milspec diaphragm, making it compatible with all fuel types, including aggressive leaded race fuels.
What fittings are included with the FPR6 Fuel Pressure Regulator TS-0404-1022?
The FPR6 Fuel Pressure Regulator TS-0404-1022 includes 6AN inlet and outlet fittings, as well as return fittings, making it easy to integrate into a -6AN fuel system.
How does the 1:1 ratio of the FPR6 affect fuel pressure?
The 1:1 ratio of the Turbosmart FPR6 ensures that fuel pressure rises in direct correlation with boost pressure, providing consistent fuel delivery under varying engine loads.
What is the purpose of the 1/8 NPT pressure sensor port on the FPR6?
The 1/8 NPT pressure sensor port on the Turbosmart FPR6 allows for easy installation of a pressure gauge or sensor, enabling real-time monitoring of fuel pressure for optimal tuning and performance.
