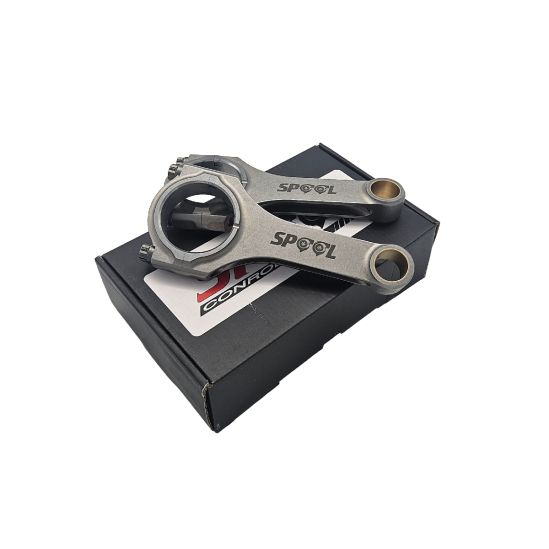

Spool Nissan SR20 H Beam Conrods
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
All Spool Conrods come standard with ARP 2000 Fasteners.
These are a direct fit conrod for all Nissan SR20 engines.
These conrods feature:
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets + - 1 gram
- Vacuum degassed to remove impurities.
- Side oil squirters
No bearings are included.
Specifications:
Small End Pin Size: 22mm
Weight: 610g (with bolts)
We have customers making over 1000 RWHP with Spool Conrods, check out the project cars here.
| Product Name | Spool Nissan SR20 H Beam Conrods |
|---|---|
| Brands | Spool |
| Engine | SR20 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use ARP conrod bolts, usually ARP2000 as standard with L19 or CA625+ available on some models. ARP2000 bolts are generally torqued to around 55 ft-lb for 3/8 inch and around 75 ft-lb for 7/16 inch when using ARP Ultra-Torque lube. L19 bolts must be tightened by stretch, not torque. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
What is the recommended machining process for the Spool SR20 H Beam Conrods?
While the Spool SR20 H Beam Conrods are designed as a direct fit for Nissan SR20 engines, it is advisable to check the big-end and small-end sizes for proper fitment. Depending on the specific engine and its condition, honing may be required to ensure optimal clearances.
What are the benefits of the two-piece forging design in these conrods?
The two-piece forging design of the Spool SR20 H Beam Conrods enhances strength and durability by allowing for better alignment and load distribution. This construction method also contributes to the overall weight reduction while maintaining structural integrity under high-stress conditions.
Are there any specific installation tips for the Spool SR20 H Beam Conrods?
When installing the Spool SR20 H Beam Conrods, ensure that the dowelled caps are properly aligned for precision fitment. It is also essential to follow ARP's latest instructions for bolt torque or stretch specifications to achieve the best performance and reliability.
What type of power levels can the Spool SR20 H Beam Conrods handle?
The Spool SR20 H Beam Conrods are capable of supporting power levels exceeding 1000 RWHP, provided that the engine is properly built and tuned. Reliability will depend on factors such as machining tolerances, fuel quality, boost levels, and RPM.
Do I need to use specific bearings with the Spool SR20 H Beam Conrods?
No bearings are included with the Spool SR20 H Beam Conrods, so you will need to source compatible bearings separately. Ensure that the bearings match the specifications required for your specific SR20 engine setup.
