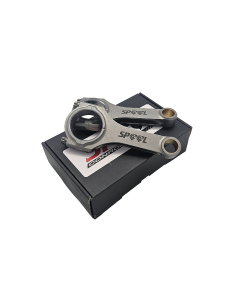

Carrillo Conrods for 4 cyl Nissan SR20 Pro-A 3/8 Bolt (NI-SR2-1<A-65364H )
Price is for a set of Conrods
This conrod is special order, please allow up to 2 weeks for delivery if not in stock at CP Carrillo we will let you know the ETA.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
|
Make |
Nissan / Infiniti / Datsun |
|
Model Engine Code |
SR20 |
|
New Part Number |
SCR5442 |
|
Old Part Number |
NI-SR2-1 |
|
Centre to Centre (in) |
5.364 |
|
Centre to Centre (mm) |
136.25 |
|
Style |
PRO-A |
|
Bolt Size |
3/8 |
|
Bolt Type |
WMC |
|
Pin Width (in) |
0.93 |
|
Pin Width (mm) |
23.62 |
|
Big End Width (in) |
0.894 |
|
Bigh End Width (mm) |
22.71 |
|
Big End Bore (in) |
2.008 |
|
Big End Bore (mm) |
51.003 |
|
Pin Bore |
22mm |
|
Total/Rotate/Receip (grams) |
511 / 374 / 137 |
|
FN |
H |
|
Cylinders |
4 |
Manufactured from USA made oversized proprietary steel forgings to enable proper grain flow and guarantee removal of any surface inclusions, CP-Carrillo ensures strength and durability of each Carrillo rod. Consistent and reliable from the first point of precision manufacturing all the way to extreme uses in racing world, exclusive Carrillo H beam and Pro (S)A designs offer the highest strength-to-weight ratio; Custom designed fasteners; 100 traceability; multi-step final inspection; CP-Carrillo moly based fastener lubrication included.
| Product Name | Carrillo Conrods for 4 cyl Nissan SR20 Pro-A 3/8 Bolt (NI-SR2-1 |
|---|---|
| Brands | Carrillo |
| Engine | SR20 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use ARP conrod bolts, usually ARP2000 as standard with L19 or CA625+ available on some models. ARP2000 bolts are generally torqued to around 55 ft-lb for 3/8 inch and around 75 ft-lb for 7/16 inch when using ARP Ultra-Torque lube. L19 bolts must be tightened by stretch, not torque. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
What are the specific machining requirements for the SCR5442 conrods?
The SCR5442 conrods may require honing of the big-end or small-end to achieve the correct journal and pin sizes, depending on the specific tolerances of your SR20 engine. Always verify clearances with your engine builder to ensure optimal fitment.
What is the recommended application for the SCR5442 conrods?
The SCR5442 conrods are designed for high-performance applications in the Nissan SR20 engine family. They are suitable for both street and racing use, providing a strong and lightweight option for builds aiming for increased power and reliability.
What is the weight of the SCR5442 conrods and how does it affect performance?
The total weight of the SCR5442 conrods is approximately 511 grams. A lower weight contributes to reduced reciprocating mass, which can improve engine response and allow for higher RPMs, but ensure your engine is properly balanced with the full rotating assembly.
Are there any specific installation tips for the SCR5442 conrods?
When installing the SCR5442 conrods, ensure that the ARP2000 bolts are torqued to the recommended specifications using ARP Ultra-Torque lubricant. Additionally, double-check that the conrods are oriented correctly in relation to the crankshaft and piston assembly.
What is the significance of the Pro-A design in the SCR5442 conrods?
The Pro-A design of the SCR5442 conrods offers enhanced strength-to-weight ratio and durability, making them ideal for high-stress applications. This design is specifically engineered to withstand the rigours of racing while maintaining reliability in performance builds.
-
-
