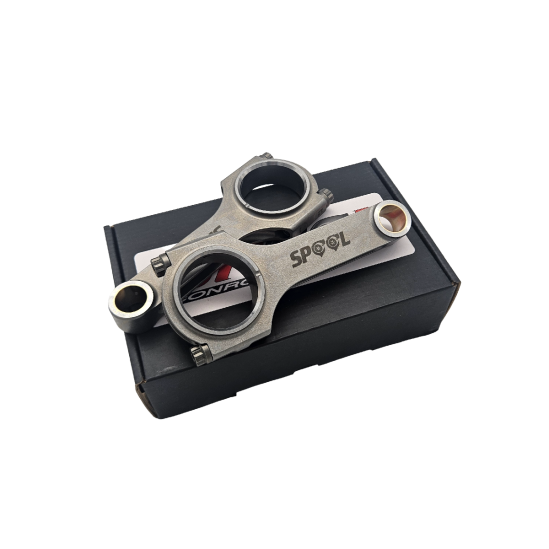

Spool Nissan CA18 H Beam Conrods
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
All Spool Conrods come standard with ARP 2000 Fasteners.
These are a direct fit conrod for all Nissan CA18 engines.
Now with side oil squirters!
These conrods feature:
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets + - 1 gram
- Vacuum degassed to remove impurities.
- Side oil squirters
No bearings are included.
Specifications:
Small End Pin Size: 20mm
Weight: 560g
We have customers making over 1000 RWHP with Spool Conrods, check out the project cars here.
| Product Name | Spool Nissan CA18 H Beam Conrods |
|---|---|
| Brands | Spool |
| Engine | CA18 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use ARP conrod bolts, usually ARP2000 as standard with L19 or CA625+ available on some models. ARP2000 bolts are generally torqued to around 55 ft-lb for 3/8 inch and around 75 ft-lb for 7/16 inch when using ARP Ultra-Torque lube. L19 bolts must be tightened by stretch, not torque. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
What is the benefit of the side oil squirters in the Spool CA18 H Beam Conrods?
The side oil squirters in the Spool CA18 H Beam Conrods help improve lubrication to the piston and cylinder walls, which can enhance cooling and reduce wear during high-performance applications. This feature is particularly beneficial in high-RPM and boosted setups.
Are the Spool CA18 H Beam Conrods suitable for high horsepower applications?
Yes, the Spool CA18 H Beam Conrods are designed to handle high horsepower applications, with customers reporting over 1000 RWHP. However, achieving such power levels reliably depends on proper machining, clearances, tuning, and fuel quality.
What type of steel are the Spool CA18 H Beam Conrods made from?
The Spool CA18 H Beam Conrods are made from high tensile 4340 forged steel, which provides excellent strength and durability for performance applications.
Do I need to perform any machining on the Spool CA18 H Beam Conrods before installation?
While the Spool CA18 H Beam Conrods are designed as a direct fit, it's advisable to check the big-end and small-end sizes for proper fitment. Depending on your engine's condition, you may need to hone the big-end or small-end to achieve the correct clearances.
What is the weight of the Spool CA18 H Beam Conrods?
Each Spool CA18 H Beam Conrod weighs approximately 560 grams. The rods are weight matched within ±1 gram for consistency across the set.
