Spool Mitsubishi 4G93 Conrods
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

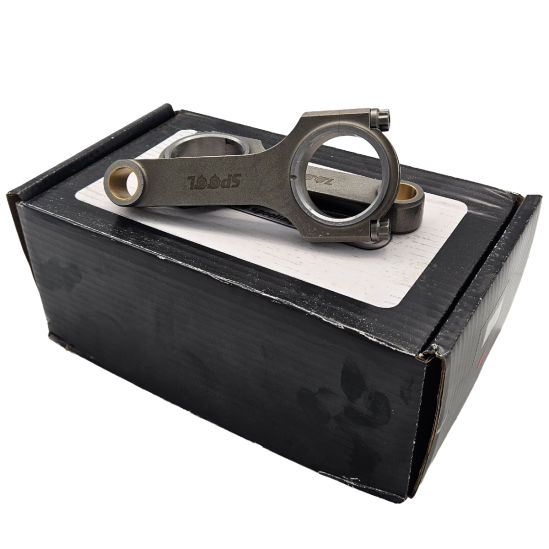

Mitsubishi 4G93 Forged H Beam Connecting Rods
These are a direct fit conrod for all Mitsubishi 4G93 engines.
Note: These connecting rods may require clearancing of the cylinder block to install them.
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
Weight: 510g
No bearings are included.
We have customers making over 1000 RWHP with Spool Conrods, check out the project cars here.
| Product Name | Spool Mitsubishi 4G93 Conrods |
|---|---|
| Brands | Spool |
| Engine | 4G93 |
| Make | Mitsubishi |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use ARP conrod bolts, usually ARP2000 as standard with L19 or CA625+ available on some models. ARP2000 bolts are generally torqued to around 55 ft-lb for 3/8 inch and around 75 ft-lb for 7/16 inch when using ARP Ultra-Torque lube. L19 bolts must be tightened by stretch, not torque. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
Do the Spool Mitsubishi 4G93 conrods require any modifications for installation?
Yes, these connecting rods may require clearancing of the cylinder block for proper installation. It's essential to check for any interference before final assembly.
What is the weight of the Spool Mitsubishi 4G93 conrods?
Each conrod weighs approximately 510 grams, ensuring a lightweight yet robust design suitable for performance applications.
What materials are the Spool Mitsubishi 4G93 conrods made from?
These conrods are constructed from high tensile 4340 forged steel, providing excellent strength and durability for high-performance applications.
Are the Spool Mitsubishi 4G93 conrods suitable for high horsepower builds?
Yes, customers have successfully used these conrods in builds producing over 1000 RWHP. However, reliability will depend on proper machining, clearances, tuning, and fuel quality.
Do the Spool Mitsubishi 4G93 conrods come with bearings?
No, the Spool Mitsubishi 4G93 conrods do not include bearings. You will need to source compatible bearings separately for your build.
