Spool Nylon Braided Hose - AN-12 - 11/16" 17.4mm/ 31/32" 24.4mm
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

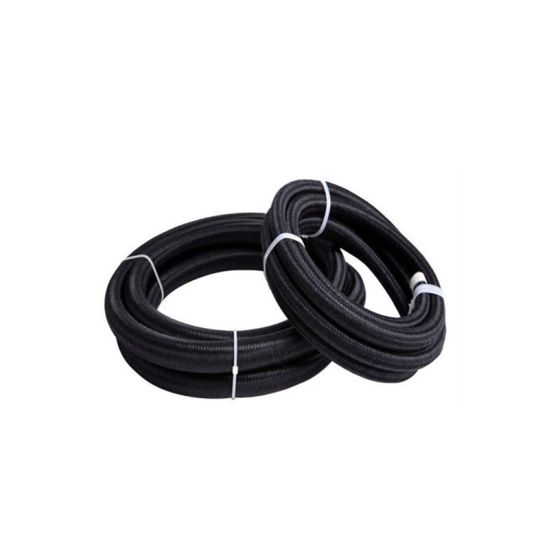

SPOOL NYLON BRAIDED HOSE
Spool Nylon Braided Hose - AN-12 - 11/16" 17.4mm/ 31/32" 24.4mm
| Inner Material: | CPE synthetic rubber |
|---|---|
| Outer Material: | All black Nylon |
| Size: | AN4 to AN20 |
| Temperature: | -40°C to 150°C |
| Pressure: | 2000 PSI |
| Usage: | Tuning Parts, Oil, e85, Fuel Line |
Nylon fiber and stainless steel braid cover for excellent flexibility and resistance to abrasion. Outer nylon braided has excellent inflaming and is safer to use.
The braided nylon outer shield protects the hose when it rubs on the engine or other car parts, inner core is stainless steel. It is safe in temperatures from -40 degrees Fahrenheit to 150 degrees Fahrenheit.
- Inner: A flexible stainless steel inner core for superior strength embedded in the Chlorinated Polyethylene (CPE) synthetic rubber liner
- Outer: Constructed with a braided nylon outer shield for abrasion resistance
- For use with fuel systems, methanol, oils, lubricants, coolant systems, and vacuum applications
- Minimum temperature -40°C, Maximum temperature 150°C
| Spool Series | Size | I.D. | O.D. | Operation Press | Burst Press |
|---|---|---|---|---|---|
| SF-0723-4-M | AN4 | 7/32" | 7/16" | 500 PSI | 2000 PSI |
| SF-0723-5-M | AN5 | 1/4" | 1/2" | 500 PSI | 2000 PSI |
| SF-0723-6-M | AN6 | 11/32" | 9/16" | 500 PSI | 2000 PSI |
| SF-0723-7-M | AN7 | 3/8" | 5/8" | 500 PSI | 2000 PSI |
| SF-0723-8-M | AN8 | 7/16" | 11/16" | 500 PSI | 2000 PSI |
| SF-0723-9-M | AN9 | 1/2" | 23/32" | 500 PSI | 2000 PSI |
| SF-0723-10-M | AN10 | 9/16" | 53/64" | 500 PSI | 2000 PSI |
| SF-0723-12-M | AN12 | 11/16" | 31/32" | 350 PSI | 1400 PSI |
| SF-0723-16-M | AN16 | 7/8" | 13/64" | 350 PSI | 1400 PSI |
| SF-0723-20-M | AN20 | 1-1/8" | 1-13/32" | 350 PSI | 1400 PSI |
Application:
- Nylon and stainless steel braided CPE fuel hose can be used with transmission fluid, coolant, oil, pump gas, race gas, vacuum, hydraulic fluid, diesel, and fuel
- Commonly used as transmission oil cooler line, fuel return line, fuel supply line, coolant fluid hose, carburetor fuel hose, turbo cooler line, oil feed line, LS swap fuel line
| Product Name | Spool Nylon Braided Hose - AN-12 - 11/16" 17.4mm/ 31/32" 24.4mm |
|---|---|
| Brands | Spool |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is the difference between nylon and stainless braided hose?
Nylon braided hose is lighter and easier to work with. Stainless is more abrasion-resistant and suited to harsher environments.
How do I correctly assemble AN hose ends?
Cut the hose square, clean debris, and follow the fitting manufacturer’s assembly instructions carefully to avoid leaks.
What is the maximum operating pressure for the Spool Nylon Braided Hose - AN-12?
The Spool Nylon Braided Hose - AN-12 has a maximum operating pressure of 350 PSI and a burst pressure of 1400 PSI. Ensure that your application does not exceed these limits for safe operation.
What fluids can I use with the Spool Nylon Braided Hose - AN-12?
This hose is suitable for a variety of fluids including transmission fluid, coolant, oil, pump gas, race gas, vacuum, hydraulic fluid, diesel, and fuel. Always ensure compatibility with the specific fluids in your application.
What temperature range can the Spool Nylon Braided Hose - AN-12 withstand?
The hose can operate in temperatures ranging from -40°C to 150°C. This makes it versatile for various automotive and performance applications.
Is the Spool Nylon Braided Hose - AN-12 suitable for high-performance applications?
Yes, the Spool Nylon Braided Hose - AN-12 is designed for high-performance applications, including use in fuel systems, oil lines, and coolant systems. Its construction provides excellent flexibility and abrasion resistance.
Do I need any special fittings for the Spool Nylon Braided Hose - AN-12?
You will need AN fittings that match the AN-12 size for proper connection. Ensure that the fittings are compatible with the hose's intended use and the fluids being transported.
-
-
-
-
-
-
