PULSAR Reverse Rotation 7375G 1200HP 73mm Compact Single Turbo Or Twin Turbo Set
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

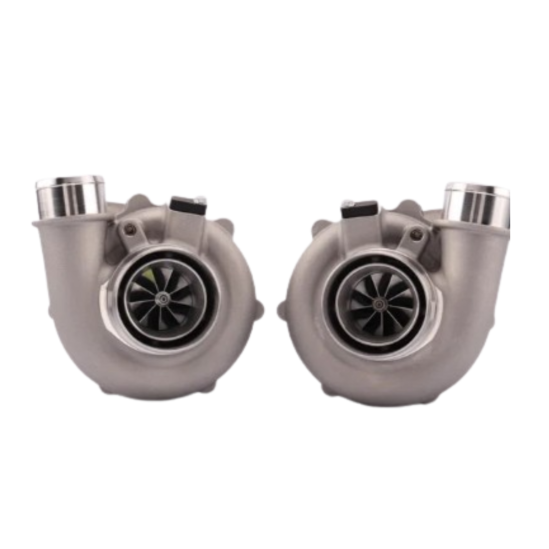

A pair of 7375 1200HP compact turbos (one with reverse rotation and the other with normal rotation).
- Dual ceramic ball bearing system delivers superior turbo response and increased durability by minimizing shaft movement.
- 10-blade PTG-Aero billet compressor wheel with extended tapered tip technology for improved airflow.
- 9-blade PTG-Aero Inconel 713c turbine wheel designed for high-temperature resilience.
- Anti-surge ported-shroud compressor inlet with a cover that integrates a speed sensor port.
- Compressor Wheel: 73mm x 91mm
- Turbine Wheel: 82mm x 75mm
- Compressor Inlet: 4†Hose
- Compressor Outlet: 3†Hose
- Turbine Inlet: 3†V-band
- Turbine Outlet: 3.5†V-band
- Water Ports: -6AN
- Oil Feed: Flange required (recommended size: -4AN standard T4 flange, non-restricted)
- Oil Drain: -12AN (includes O-ring sealed flange kit)
- Dual V-band 1.01 A/R and 1.15 A/R housings feature an open-style inlet, with a 3.5†flange provided as the default in the box.
| Product Name | PULSAR Reverse Rotation 7375G 1200HP 73mm Compact Single Turbo Or Twin Turbo Set |
|---|---|
| Brands | Pulsar |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
How do I choose the right turbo size?
Turbo selection depends on engine size, boost target, rpm range and desired response. A smaller turbo spools faster; a larger turbo supports more top-end power.
Why is wastegate placement important?
Poor placement or sizing can cause boost creep or unstable boost control.
What is the benefit of using a reverse rotation turbo in my setup?
A reverse rotation turbo, like the one included in the PUL-7375G-1200-RR set, allows for unique plumbing configurations, especially in twin turbo setups. This can help balance the exhaust flow and improve overall performance by reducing turbo lag and enhancing throttle response.
What type of oil feed and drain setup is required for these turbos?
The PUL-7375G-1200-RR turbos require a -4AN oil feed from a standard T4 flange, which should be non-restricted for optimal performance. The oil drain should be a -12AN setup, and the kit includes an O-ring sealed flange for a secure connection.
What are the recommended hose sizes for the compressor inlet and outlet?
For the PUL-7375G-1200-RR turbos, the compressor inlet requires a 4-inch hose, while the compressor outlet is designed for a 3-inch hose. Ensuring the correct hose sizes will help maintain proper airflow and performance.
How should I configure the water ports for these turbos?
The PUL-7375G-1200-RR turbos come with -6AN water ports. It's important to connect these properly to ensure effective cooling, especially during high-performance applications where heat management is critical.
What is the significance of the dual ceramic ball bearing system in these turbos?
The dual ceramic ball bearing system in the PUL-7375G-1200-RR turbos enhances turbo response and durability by reducing shaft movement. This design allows for quicker spool times and improved reliability under high boost conditions, making it ideal for performance applications.
