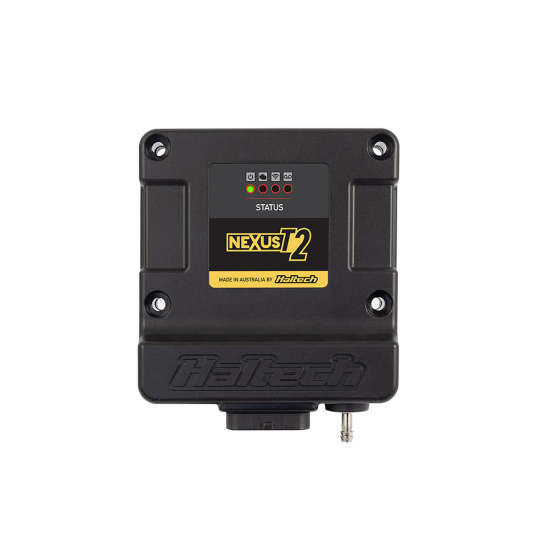

Haltech Nexus T2 ECU (HT-211000)
Outputs: Up to 6 injector and 6 ignition.
Suits: Universal 1–6 cylinder or 3 rotor applications with sequential control. Engines up to 12 cylinders can be operated using semi-sequential or batch-fire configurations.
Includes: Nexus T2 ECU, USB-C cable, USB-C dust cap and mounting bolt set.
Notes: Haltech’s entry-level, single-connector Nexus ECU and the direct successor to the Elite 750. Ideal for cable-throttle six-cylinder, three-rotor, naturally aspirated and forced-induction applications.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Haltech Nexus T2 ECU (HT-211000)
The Haltech Nexus T2 is a compact standalone engine management system designed for performance applications that require up to six channels of sequential fuel and ignition control.
As the successor to the Elite 750, the Nexus T2 features six peak-and-hold injector outputs and six ignition outputs. It is ideally suited to six-cylinder and three-rotor engines, while engines with up to 12 cylinders can also be controlled using semi-sequential or batch-fire configurations.
The T2 delivers a significant technology upgrade over the Elite platform. Wi-Fi tuning, Haltech Connect app compatibility, multi-level engine protection, knock control and advanced onboard logging are supported alongside motorsport functions including traction control, launch control, rolling anti-lag, trans-brake control and up to six stages of nitrous control.
An internal 4 Bar MAP sensor makes the ECU suitable for naturally aspirated and forced-induction engines. Five configurable analogue voltage inputs, five digital pulsed outputs and CAN communication provide flexibility for additional sensors, Haltech displays, wideband controllers and compatible expansion devices.
Haltech's Nexus Software Programmer provides access to high-resolution 4D tuning, long-term learning and advanced closed-loop boost control. High-speed USB-C, Wi-Fi connectivity, a four-channel oscilloscope and 32MB of onboard logging make configuration and fault-finding faster and easier.
The Nexus T2 shares its connector and pinout with the Elite 750, allowing compatible Elite 750 wiring kits and existing installations to be reused. Pin 13 can operate as either a knock input or SPI 2 input.
Key Features
- Six peak-and-hold injector outputs, also compatible with saturated injectors
- Six ignition outputs
- Supports up to six-cylinder or three-rotor engines with sequential control
- Internal 4 Bar MAP sensor
- Five fully configurable analogue voltage inputs
- Five digital pulsed outputs
- Two differential engine-position inputs for trigger and home
- Single knock input, shared with SPI 2
- One CAN bus network
- Wi-Fi tuning and Haltech Connect app compatibility
- High-speed USB-C communication
- 32MB onboard data logging
- Up to 300 logging channels at a maximum 1kHz sampling rate
- Four-channel onboard oscilloscope
- Multi-level engine protection and flex-fuel support
- Up to two channels of variable cam control
- 4D closed-loop boost control
- Launch control, traction control and rolling anti-lag
- Six-stage nitrous control
- IP66-rated sealed enclosure
- Fully enabled with no additional feature-unlock charges
Important Fitment Notes
- Designed for cable-throttle applications; drive-by-wire throttle control is not supported.
- A compatible external Haltech CAN wideband controller is required for wideband O2 control.
- A wiring harness or AMP 34-pin plug-and-pin set is required and sold separately unless supplied as part of a kit.
Technical Specifications
| Specification | Nexus T2 |
|---|---|
| Sequential engine support | Up to 6 cylinders |
| Rotary engine support | Up to 3 rotors |
| Injector outputs | 6 peak-and-hold outputs |
| Ignition outputs | 6 |
| Internal MAP sensor | 4 Bar |
| Analogue voltage inputs | 5 |
| Digital pulsed outputs | 5 |
| Engine-position inputs | 2 differential inputs — trigger and home |
| Knock input | 1, shared with SPI 2 |
| CAN networks | 1 |
| Drive-by-wire throttle | No |
| Variable cam control | Up to 2 camshafts |
| Onboard logging | 32MB; up to 300 channels at up to 1kHz |
| Communications | USB-C and Wi-Fi |
| Ingress protection | IP66 |
| Weight | 0.39kg |
| Elite-series successor | Elite 750 |
What Is Included
- Haltech Nexus T2 ECU
- USB-C programming cable
- USB-C dust cap
- Mounting bolt set
Compatible Accessories Sold Separately
- HT-030009 — AMP 34-pin Key 1 plug-and-pin set
- HT-181200 — Nexus T1/T2 Basic Universal Wire-in Harness, 2.5m
- HT-181201 — Nexus T1/T2 Premium Universal Wire-in Harness, 2.5m
- HT-159976 — WB1 Bosch LSU 4.9 Single-Channel CAN O2 Wideband Controller Kit
- HT-159986 — WB2 Bosch LSU 4.9 Dual-Channel CAN O2 Wideband Controller Kit
| Product Name | Haltech Nexus T2 ECU (HT-211000) |
|---|---|
| Brands | Haltech |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What engines is the Haltech Nexus T2 suitable for?
The Nexus T2 supports sequential fuel and ignition control for engines with up to six cylinders or three rotors. Engines with up to 12 cylinders can also be operated using semi-sequential or batch-fire configurations.
Does the Nexus T2 support drive-by-wire throttle?
No. The Nexus T2 is designed for cable-throttle applications and does not provide drive-by-wire throttle control.
Can the Nexus T2 replace a Haltech Elite 750?
The Nexus T2 uses the same connector and pinout as the Elite 750, so compatible Elite 750 wiring kits and many existing installations can be reused. The configuration and pin functions should still be checked before installation.
Does the Nexus T2 have a built-in wideband oxygen controller?
No. Wideband oxygen control requires a compatible external Haltech CAN wideband controller such as a WB1 or WB2, sold separately.
What is included with the Haltech Nexus T2 ECU?
The package includes the Nexus T2 ECU, a USB-C programming cable, USB-C dust cap and mounting bolt set. A suitable wiring harness or connector kit is required separately unless supplied as part of another kit.
