Performance Springs Ford Cross Flow Inline 6 Cylinder Single & Damper Valve Springs
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

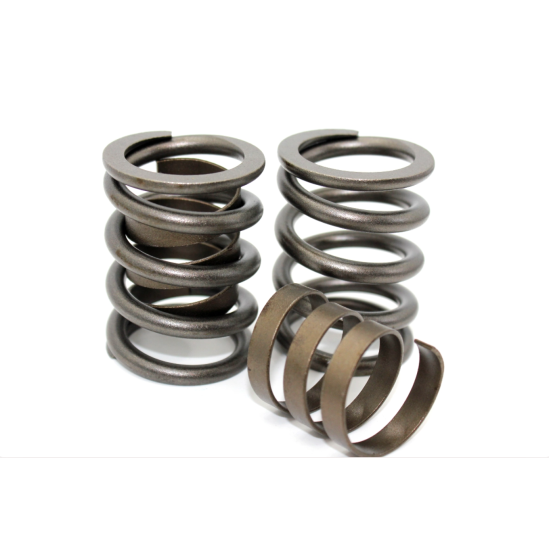

Performance Springs CLBB1 Single & Damper Valve Springs are designed specifically for the Ford Cross Flow Inline 6-cylinder engine.
These performance valve springs are designed to provide improved valve train control for Ford Cross Flow inline 6-cylinder performance applications. The CLBB1 is rated for up to 0.540" valve lift, with a fitted height of 1.800" and 125 lb of spring pressure at fitted height.
Product Specifications:
- Maximum Valve Lift: 0.540"
- Fitted Height: 45.7 mm (1.800")
- Outside Diameter: 38.6 mm
- Inside Diameter: 28.5 mm
- Pressure @ 45.7 mm: 125 lb
- Pressure @ 31.7 mm: 320 lb
- Coil Bind: 29.2 mm
What's Included:
- 12 × Performance Springs CLBB1 Single & Damper Valve Springs
Performance Valve Springs confirms that a Ford Cross Flow Inline 6-cylinder engine requires 12 × CLBB1 springs. When ordered through the supplier, the correct quantity is automatically added to the cart.
Important: Always verify valve lift, fitted height, spring dimensions, pressures, coil bind clearance, retainer compatibility and application suitability before installation. Performance Valve Springs states that valve spring pressure specifications have an approximate ±8% tolerance. The installer is responsible for checking and rechecking all dimensions, pressures, applications and specifications before, during and after installation.
| Product Name | Performance Springs Ford Cross Flow Inline 6 Cylinder Single & Damper Valve Springs |
|---|---|
| Brands | Performance Springs |
| Engine | 250 XFlow |
| Make | Ford, Mazda |
