Performance Springs Nissan RB25 NEO Valve Spring & Ti-Retainer Kit

Performance Springs PST 25N96060K is a performance single valve spring and titanium retainer kit designed specifically for the Nissan RB25 NEO R34 Solid Lifter 24V engine.

The kit is designed to provide improved valve train control for performance RB25 NEO applications, with 100 lb of seat pressure and 185 lb at 10 mm valve lift.

The springs have an installed height of 38.12 mm and are specified for a maximum valve lift of 11.5 mm.

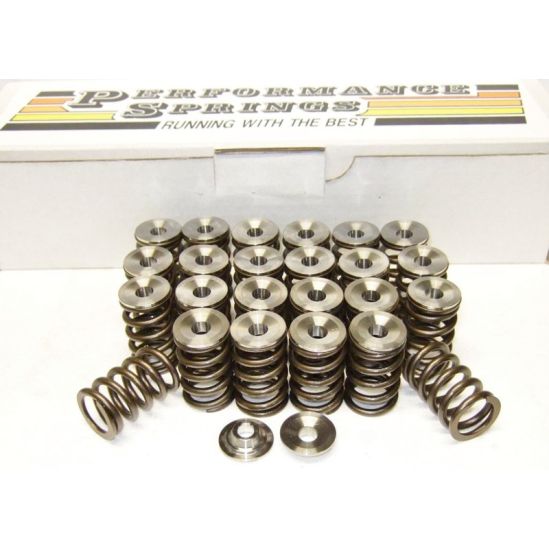

This complete kit includes 24 PVS single valve springs and 24 titanium retainers, providing the components required for a complete 24-valve RB25 NEO R34 engine.

Spring Specifications

• Engine Model: RB25 NEO R34
• Engine Configuration: Solid Lifter 24V
• Spring Type: Single Valve Spring
• Installed Height: 38.12 mm
• Seat Pressure: 100 lb
• Pressure @ 10 mm Lift: 185 lb
• Maximum Valve Lift: 11.5 mm

Kit Includes

• 24 × PVS Single Valve Springs
• 24 × Titanium Valve Spring Retainers

Application:

• Nissan RB25 NEO
• Nissan R34 RB25 NEO
• RB25 NEO Solid Lifter 24V

Important Installation Information:

Always verify installed height, valve lift, spring pressure, coil bind clearance, retainer compatibility and all other dimensions against the specific engine and cylinder head configuration before installation.

Performance Valve Springs states that the installer is responsible for checking and rechecking all dimensions, pressures, applications and specifications before, during and after installation. The supplier also specifies an approximate ±8% tolerance on valve spring pressure specifications.

The titanium retainers are manufactured in-house by Performance Valve Springs and availability can be subject to delays. The supplier currently notes a 2–3 week delay on titanium retainers, so availability should be confirmed if the parts are required urgently.
