Kelford CHEV LS Nitrided 'PACALOY' Beehive Valve spring set
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

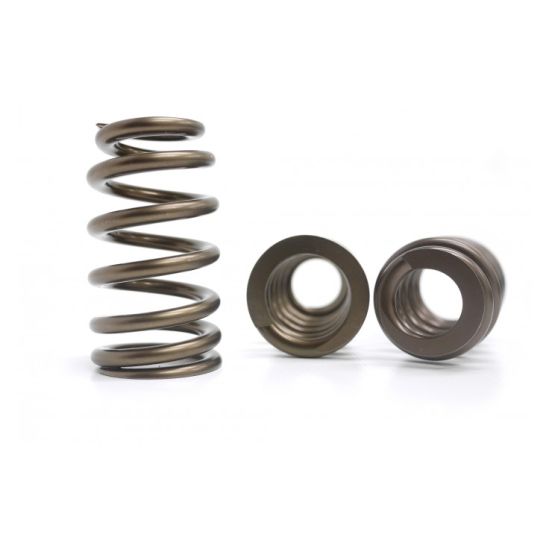

Kelford CHEV LS Nitrided 'PACALOY' Beehive Valve Spring Set
Enhance your engine's performance with the Kelford CHEV LS Nitrided 'PACALOY' Beehive Valve Spring Set, designed for superior durability and efficiency. Perfect for high-performance applications, these springs are engineered to meet the demands of your Chevrolet LS engine.
- Installation: 130lb at 1.800", 360lb at .600" lift
- Coil Bind: 1.10"
- Spring Rate: 385 lb/inch
- Compatibility: Requires a custom spring base for LS7 engines
- Optional: Titanium retainers available for enhanced performance
These nitrided valve springs are crafted from high-quality 'PACALOY' material, ensuring longevity and reliability under extreme conditions. Whether you're upgrading for racing or street performance, trust Kelford to deliver exceptional results.
| Product Name | Kelford CHEV LS Nitrided 'PACALOY' Beehive Valve spring set |
|---|---|
| Brands | Kelford |
| Engine | GM / LS, LS 5.7L and 6.0L V8 |
| Make | Chevrolet, GM, Holden, LS Chev |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What information do I need to match these pistons to my engine?
You need the engine code, bore size, stroke, rod length, pin diameter and target compression ratio. These determine the correct piston compression height and crown design.
How should ring gaps be set for these pistons?
Ring gaps must be set by your engine builder based on fuel type, boost level and the intended rpm range. Forced-induction engines usually require larger gaps.
Are forged pistons suitable for street engines?
Yes. Forged pistons handle detonation and high cylinder pressure better than cast units. Your builder should set the piston-to-bore clearance to suit your application.
What is the recommended installation height for the Kelford CHEV LS Beehive Valve Spring Set?
The recommended installation height for these valve springs is 1.800 inches, with a seat pressure of 130 lb. This ensures optimal performance and reliability in high-performance applications.
What is the maximum lift these valve springs can handle?
These valve springs can handle a maximum lift of 0.600 inches, providing a spring pressure of 360 lb at that lift. It's important to ensure your camshaft specifications align with these limits.
Do I need a custom spring base for my LS7 engine when using these springs?
Yes, a custom spring base is required for LS7 engines when using the Kelford CHEV LS Nitrided 'PACALOY' Beehive Valve Spring Set. Ensure compatibility to avoid installation issues.
What is the coil bind height for these valve springs?
The coil bind height for the Kelford CHEV LS Beehive Valve Spring Set is 1.10 inches. It's crucial to check your valve train geometry to prevent coil bind during operation.
Can I use titanium retainers with these valve springs?
Yes, titanium retainers are available as an optional upgrade for the Kelford CHEV LS Nitrided 'PACALOY' Beehive Valve Spring Set. Using titanium retainers can enhance performance by reducing weight and improving valve control.
