Haltech Nexus S3 ECU + Plug and Pin Set

On Sale

Skip to the beginning of the images gallery

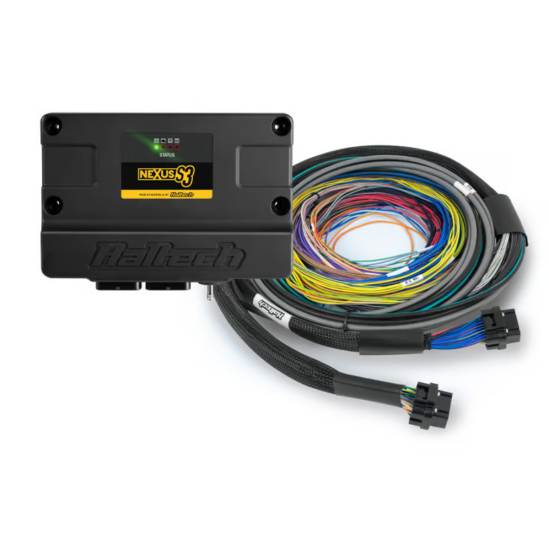

Haltech Nexus S3 ECU + Universal Wire-in Harness - 2.5m (8')

Name: Haltech Nexus S3 ECU + Universal Wire-in Harness - 2.5m (8')
Brand: Haltech
SKU: HT-213200
Price: 3305 AUD
Availability: InStock

Be the first to review this product

Special Price AUD$3,004.55 Regular Price AUD$3,204.55

SKU

HT-213200

ECU Options

Quantity:

+ -

Add to Compare

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

Details

More Information

DELIVERY & FREIGHT

DISCLAIMER

ECU OVERVIEW

Haltech's Nexus S3 is the highly anticipated successor to the Elite 2500, offering a substantial upgrade in both performance and functionality. Combining the reliable features of the Elite 2500 with the advanced processing power of the Nexus platform, the Nexus S3 is the ideal choice for high-performance engines and demanding applications.

8 x peak/hold injector drivers – can be used as low side drive outputs for enhanced fuel control.
8 x low current ignition outputs – suitable for low side drive ignition systems for optimal spark timing.
6 x low side drive outputs – PWM capable (DPOs) for precise output control, offering greater flexibility in tuning.
4 x push-pull / half bridge outputs (8A, PWM capable) – perfect for electronic throttle control, ensuring smooth throttle transitions.
1 x ECR output – for additional control capabilities, giving users the flexibility to add extra functions.
11 x 0-5V analog inputs – with redundancy for electronic throttle and switchable 5V pullup, providing greater input flexibility.
Trigger and home inputs – with differential inputs, adjustable thresholds, and glitch filters for precise sensor readings and timing.
6 x synchronous pulsed inputs – supports cam sensors, frequency inputs, or 0-5V analog inputs, with adjustable thresholds for better control.
1 x on-board wideband controller – supporting NTK and LSU4.9 sensors, ensuring accurate air-fuel ratio readings for fine-tuning engine performance.
1 x on-board 4 bar MAP sensor – for real-time boost monitoring and accurate pressure readings.
2 x CAN ports – with switchable termination, allowing for seamless integration with other CAN-enabled devices in your setup.

HARNESS OVERVIEW

Ideal for modified street cars, engine swaps, and custom wiring projects, the Universal Wire-in Harness for the Nexus S3 has ECU connectors at one end and unterminated wires at the other. All wires at the unterminated end are color-coded and clearly labeled to ensure a smooth and easy installation process.

Color-coded and labeled wires – Match the detailed wiring diagram to ensure a confusion-free construction process.
Wiring diagram – Accompanied by a quick start guide to help you get started quickly.
Software – Available for download from the Haltech website to assist with tuning and configuration.

More Information
Product Name	Haltech Nexus S3 ECU + Universal Wire-in Harness - 2.5m (8')
Brands	Haltech

Delivery & Freight

We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.

You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .

If you only see the Click and Collect shipping option, it means that your address was not validated correctly.

If you have issues calculating freight, please get in touch. We are happy to help.

Disclaimer:

Product images are for description purposes only. Actual product may vary.

Shipping calculations available at checkout.

If you are unsure, get in touch by emailing sales@spoolimports.com, messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
