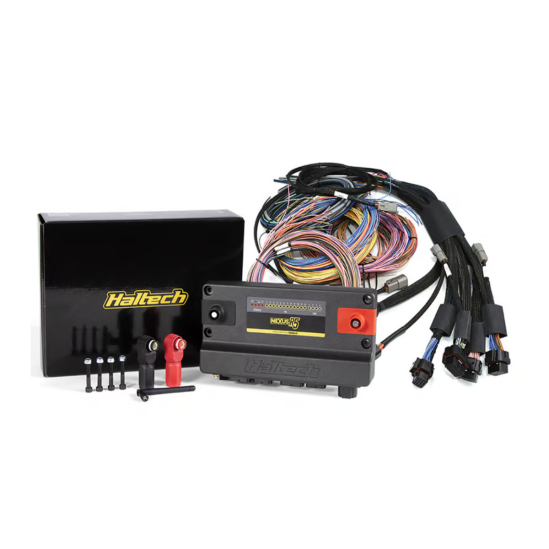

Haltech NEXUS R5 + Universal Wire-in Harness Kit - 5M / 16' Length: 5m (16')

<div class="mt-3 mb-2"><strong>ECU OVERVIEW</strong></div>
<div>The Nexus R5 is Haltech's flagship product, offering a comprehensive solution that integrates the functions of a power distribution module, data logger, dual-channel wideband controller, and advanced engine management system into a single, powerful unit — the Vehicle Control Unit (VCU).</div>
<ul>
  <li><strong>4 x 25A (continuous) push-pull PWM capable outputs</strong> (5 kHz), ideal for powering injectors, coils, transbrakes, thermofan, and fuel pumps</li>
  <li><strong>12 x 8A (continuous) high side outputs</strong> (low-speed PWM, 200 Hz), perfect for sensors, NOS solenoids, etc.</li>
  <li><strong>18 x peak/hold injector drivers</strong>, also usable as low side drive outputs</li>
  <li><strong>12 x low current ignition outputs</strong>, can also serve as low side drive outputs</li>
  <li><strong>8 x low side drive outputs</strong>, PWM capable (DPOs)</li>
  <li><strong>4 x push-pull / H-bridge outputs</strong> (8A, PWM capable), suitable for controlling electronic throttle</li>
  <li><strong>23 x 0-5V analog inputs</strong> with redundancy for electronic throttle and switchable 5V pullup</li>
  <li><strong>Trigger and home inputs</strong> with differential inputs, adjustable thresholds, and glitch filters for precise sensor feedback</li>
  <li><strong>10 x synchronous pulsed inputs</strong> (zero crossing or adjustable thresholds), supporting cam sensors, frequency inputs, or 0-5V analog inputs</li>
  <li><strong>2 x onboard wideband controllers</strong>, supporting NTK and LSU4.9 sensors for precise air-fuel ratio control</li>
  <li><strong>3 x CAN ports</strong> with switchable termination for enhanced connectivity with additional devices</li>
</ul>

<div class="mt-3 mb-2"><strong>HARNESS OVERVIEW</strong></div>
<div>Perfect for dedicated race cars, engine swaps, and custom wiring projects, the Universal Wire-in Harness features VCU connectors at one end and unterminated wires at the other. The wires at the unterminated end are color-coded and clearly labeled for straightforward installation. Simply connect your Haltech ECU to the terminated end, follow the wiring diagram, load your base map, and you're all set!</div>
<ul>
  <li><strong>Color-coded and labeled wires</strong> that match the detailed wiring diagram for a seamless construction process</li>
  <li>The wiring diagram is paired with the full VCU manual and software, available on a USB key or downloadable from the Haltech website</li>
</ul>
