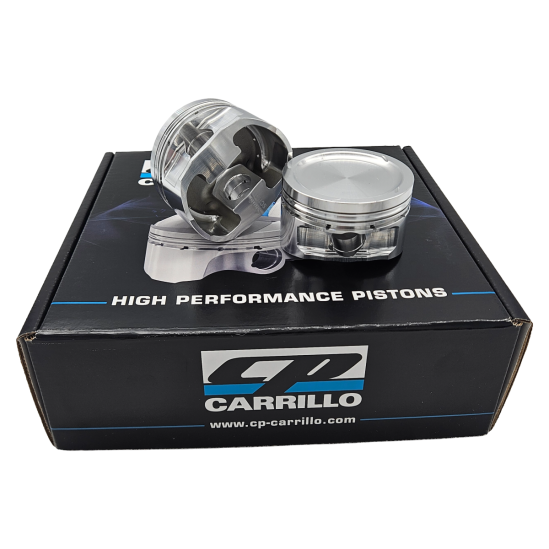

Forged Pistons for Audi/ VW, 2.0L TFSI 20mm pin, 82.5mm, 9.5:1 (CP Pistons SC7620)
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
|
Make |
Audi/VW |
|
Model |
2.0L TFSI |
|
Part Number |
SC7620 |
|
Cylinders |
4 |
|
Bore (in) |
3.248 |
|
Bore (mm) |
82.5 |
|
Size |
STD |
|
Stroke |
92.8 |
|
Conrod |
144 |
|
Comp Height (in) |
1.165 |
|
Comp Height (mm) |
29.6 |
|
Dom/Dish CC |
-11 |
|
Compression Ratio |
9.5 |
|
Weight (Grams) |
289 |
|
Pin (mm) |
20 |
|
Rings |
CPN-3248 |
|
Ring Thickness |
1.0 x 1.2 x 2.8mm |
|
Pin included (Standard) |
787-2250-16CP1C |
|
Upgraded Pin |
787-2250-18CP3C |
|
Ultra Duty Pin |
787-2250-24CP3C |
|
Locks |
787X050 SWL |
CP pistons are compatible with oversized valves and high lift camshafts. CP Pistons represent the highest quality and is engineered for maximum power. Standard features include: Deep valve reliefs accommodate high lift camshafts; Larger valve reliefs for +1mm valve sizes; Custom skirt cam and barrel design; Accumulator grooves; High strength aluminum forgings; High performance rings; Fully CNC machined and balanced to +/- 1 gram; Wrist pins included at no additional cost; Double pin oilers force fed from oil ring groove; Pin lock grooves for easy lock removal; Pin fitting included.
| Product Name | Forged Pistons for Audi/ VW, 2.0L TFSI 20mm pin, 82.5mm, 9.5:1 (CP Pistons SC7620) |
|---|---|
| Brands | CP Carrillo |
| Engine | TFSI |
| Make | Audi, VW |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What information do I need to match these pistons to my engine?
You need the engine code, bore size, stroke, rod length, pin diameter and target compression ratio. These determine the correct piston compression height and crown design.
How should ring gaps be set for these pistons?
Ring gaps must be set by your engine builder based on fuel type, boost level and the intended rpm range. Forced-induction engines usually require larger gaps.
Are forged pistons suitable for street engines?
Yes. Forged pistons handle detonation and high cylinder pressure better than cast units. Your builder should set the piston-to-bore clearance to suit your application.
What is the recommended bore clearance for the SC7620 pistons?
The recommended bore clearance for the SC7620 pistons in a 2.0L TFSI engine typically ranges from 0.0015" to 0.0025". However, it's crucial to confirm this with your specific engine build and tolerances.
What type of ring gaps should I use with the SC7620 pistons?
For the SC7620 pistons, ring gaps should be set according to the intended use of the engine. A common starting point is 0.020" for the top ring and 0.022" for the second ring, but this may vary based on boost levels and RPMs.
Do I need to modify the engine block to fit the SC7620 pistons?
In most cases, the SC7620 pistons should fit without significant modifications to the engine block. However, ensure that the block is properly machined and that clearances are checked, especially if using oversized valves or high lift camshafts.
What is the weight of the SC7620 pistons, and how does it affect performance?
The SC7620 pistons weigh 289 grams each. Lighter pistons can improve engine response and reduce reciprocating mass, which can enhance overall performance, especially at higher RPMs.
What is the compression ratio of the SC7620 pistons, and how does it impact tuning?
The SC7620 pistons have a compression ratio of 9.5:1. This ratio is suitable for a balance of power and reliability, but tuning should be adjusted based on fuel quality, boost levels, and engine management to optimise performance.
-
