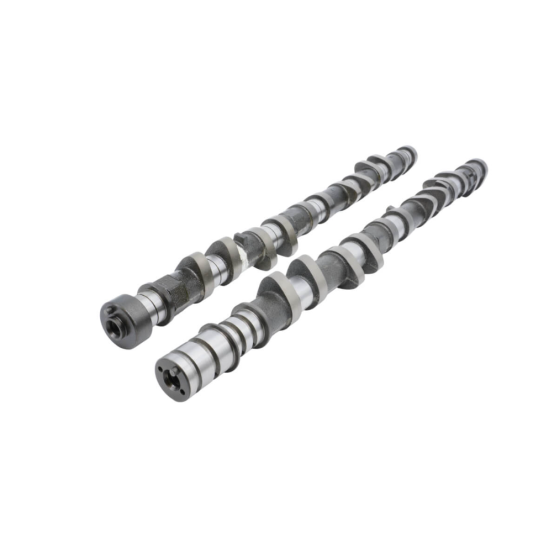

Kelford Toyota 1JZ-GTE VVTi Cams, 264/272 | 9.65mm/9.65mm - V229-C

CAMSHAFT PROFILE:

264°/272° | 9.65mm/9.65mm

High performance camshafts for the Toyota 1JZ for those looking to improve their street/strip or track day results. These camshafts are designed to deliver ultimate throttle response with VVTi and provide a good boost in mid-range power. This option is ideal if you have a single 60mm-70mm turbo and are looking for up to 8000rpm and 30psi boost.

  • Kelford Cams recommend valve spring kit KVS109-1JZ to ensure optimal performance.
AUD$1,169.09
In stock
SKU
V229-C
+ -
Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

Engine Make: TOYOTA
Engine Model: 1JZ VVTi
Part Number: V229-C Camshaft

Valve clearance
Intake:
0.25mm Set: cold at the cam
 Exhaust:
0.25mm Set: cold at the cam

Cam Lift
Intake: 9.90mm
Exhaust: 9.90mm

Rocker Ratio
Intake: 1
Exhaust: 1

Nett Valve Lift:
Intake: 9.65mm
Exhaust: 9.65mm

Advertised Duration @ 0.10mm
Intake: 264
Exhaust: 272

Duration @1.00mm VALVE LIFT
Intake: 228
Exhaust: 232

Timing @1.00mm VALVE LIFT
IVO:
EVO: 52 BBDC
IVC:
EVC: 0 TDC

Suggested Centre Lines:
Intake: VARI
Exhaust: 116

VALVE Lift @ TDC
Intake:
Exhaust:
0.94
More Information
Product Name Kelford Toyota 1JZ-GTE VVTi Cams, 264/272 | 9.65mm/9.65mm - V229-C
Brands Kelford
Engine 1JZ-GTE
Make Toyota
