Turbosmart TS Constant Tension Clamps 2.750-3.625"

Turbosmart Spring Clamps 6mm ID Vacuum Hose Pack of 10

Turbosmart Spring Clamps to suit 6mm ID Vac hose

Skip to the beginning of the images gallery

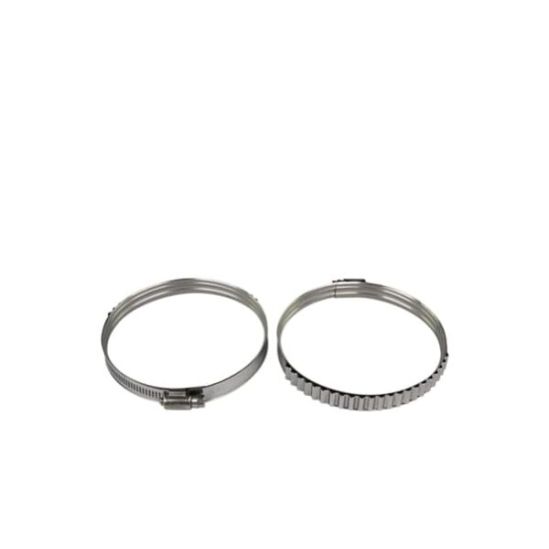

Turbosmart TS Constant Tension Clamps 3.750-4.625"

Name: Turbosmart TS Constant Tension Clamps 3.750-4.625"
Brand: Turbosmart
SKU: TS-HCT-M100
Price: 48 AUD
Availability: InStock

Be the first to review this product

AUD$43.64

SKU

TS-HCT-M100

Quantity:

+ -

Add to Compare

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

Details

More Information

DELIVERY & FREIGHT

DISCLAIMER

Faq

Constant Tension clamps from Turbosmart are designed to compensate for the thermal cycling and deformation of hoses, such as silicon hose and rubber. As components like couplers, pipes and hoses heat cycle within an engine bay, they expand and contract in size and the our Constant Tension clamps outer ‘Spring Action Band’ works to maintain consistent force & load for maximum reliability, including against deformation and ‘Compression Set’.

No more cut or bruised silicon hose thanks to this unique design that allows for the hose to expand and contract through heat cycles, while maintain perfect tension.

Click HERE for the full Range of Turbosmart Silicon and Clamps

Includes 2 Clamps

Available In
28-38mm (1.125-1.500”) -TS-HCT-M033
35-48mm (1.375-1.875”) –TS-HCT-M042
41-60mm (1.625-2.375”) –TS-HCT-M050
50-73mm (1.970-2.875”) –TS-HCT-M062
64-86mm (2.500-3.375”) –TS-HCT-M075
70-92mm (2.750-3.625”) –TS-HCT-M081
95-117.5mm (3.750-4.625”) –TS-HCT-M100

Features
Dual Spring Action through convoluted Spring Action Band
Dual Bead Inner shell for concentrated sealing force
Flanged Edges for protection of soft hose compounds
Reduced Stress & Distress to hose, increasing service life

Recommended Installation Tips
Tool(s) Required: Flat Head Screwdriver or 5/16” Socket
Installation Torque: 5.6Nm / 50in.lbs

More Information
Product Name	Turbosmart TS Constant Tension Clamps 3.750-4.625"
Brands	Turbosmart

Delivery & Freight

We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.

You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .

If you only see the Click and Collect shipping option, it means that your address was not validated correctly.

If you have issues calculating freight, please get in touch. We are happy to help.

Disclaimer:

Product images are for description purposes only. Actual product may vary.

Shipping calculations available at checkout.

If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).

How do I choose the right turbo size?

Turbo selection depends on engine size, boost target, rpm range and desired response. A smaller turbo spools faster; a larger turbo supports more top-end power.

Why is wastegate placement important?

Poor placement or sizing can cause boost creep or unstable boost control.

What is the purpose of the Turbosmart TS Constant Tension Clamps?

The Turbosmart TS Constant Tension Clamps are designed to maintain consistent force and load on hoses, compensating for thermal cycling and deformation. This ensures a reliable seal and prevents issues like hose deformation and compression set, which can occur due to heat expansion and contraction.

What size hoses are compatible with the TS-HCT-M100 clamps?

The TS-HCT-M100 clamps are suitable for hoses with a diameter range of 95mm to 117.5mm (3.750-4.625 inches). Ensure that the hose size falls within this range for optimal performance.

What tools are required for installing the TS-HCT-M100 clamps?

Installation of the TS-HCT-M100 clamps requires a flat head screwdriver or a 5/16” socket. Proper tools will help achieve the recommended installation torque of 5.6Nm (50in.lbs).

How do the flanged edges of the TS-HCT-M100 clamps benefit hose installation?

The flanged edges of the TS-HCT-M100 clamps provide protection for soft hose compounds, reducing the risk of damage during installation and ensuring a secure fit. This design feature helps to increase the service life of the hoses.

Can the TS-HCT-M100 clamps be reused after installation?

Yes, the TS-HCT-M100 clamps can be reused, provided they are not damaged during removal. Their design allows for repeated adjustments without compromising the integrity of the clamp or the hose.
