Raceworks 1L Black Aluminium Coolant Recovery Tank ALY-070BK
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

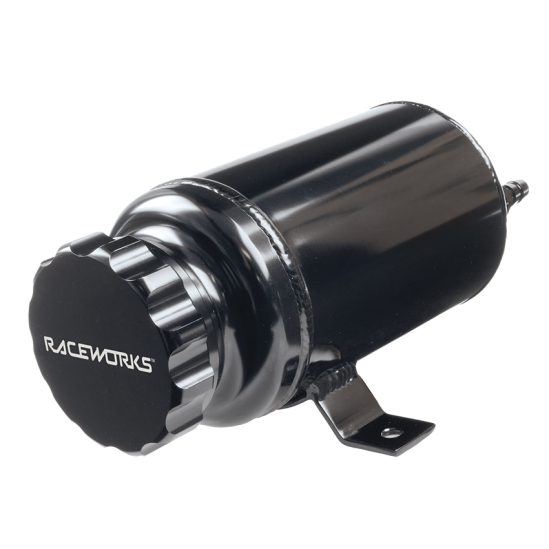

Raceworks 1L Black Coolant Recovery Tank
A compact aluminium make-up tank for custom cooling-system installations. The black tank includes a billet cap, an internal breather tube and two AN-4 ORB ports with 3/8-inch barb adapters supplied.
Specifications
| Raceworks part number | ALY-070BK |
|---|---|
| Capacity | 1 litre |
| Tank dimensions | 180 mm high × 89 mm wide × 89 mm deep |
| Connections | 2 × AN-4 ORB; includes 2 × 3/8-inch barb adapters |
| Construction | 5052 aluminium, black finish, billet cap |
| Other features | Internal breather tube |
Fitment
Universal component for a custom recovery or purge cooling layout. Check the 180 × 89 × 89 mm tank dimensions, bracket clearance and hose routing against the vehicle before ordering. This listing does not claim a vehicle-specific direct fit or a pressure-cap rating.
| Product Name | Raceworks 1L Black Aluminium Coolant Recovery Tank ALY-070BK |
|---|---|
| Brands | Raceworks |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Is ALY-070BK a direct-fit tank?
No. It is a universal 1 litre coolant recovery or make-up tank for a custom installation. Check the space, bracket mounting and hose routing before ordering.
What fittings are supplied?
It has two AN-4 ORB ports and includes two 3/8 inch barb adapters.
What are its physical dimensions?
The manufacturer specifies 180 mm high, 89 mm wide and 89 mm deep. Check clearance for the cap, hose and mounting bracket as well.
Does it have an internal breather tube?
Yes. The Raceworks specification states an internal breather tube is fitted.
-
-
