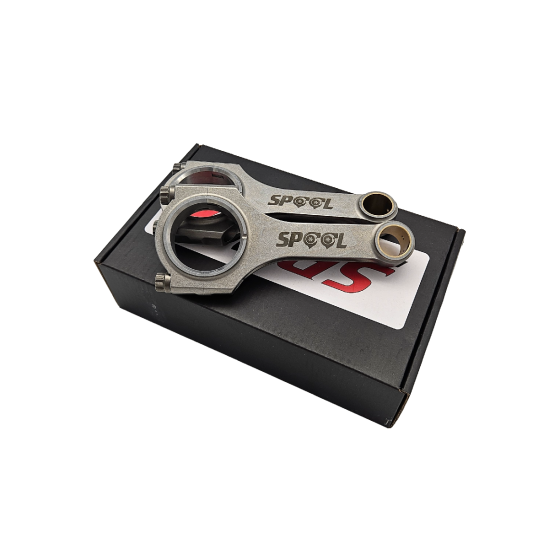

Spool Toyota 4AGE Conrods
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
All Spool Conrods come standard with ARP 2000 Fasteners.
Please Note: There are two types (models) of OEM 4AGE conrods.
These conrods feature:
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets + - 1 gram
- Vacuum degassed to remove impurities.
No bearings are included.
Specifications:
Small End Pin Size: 20mm
Big End Tunnel Size: 45mm
Centre to Centre: 122mm (also available in 135mm c/c)
Weight: 466g
Due to variations in the numerous different models of 4AGE engines, clearencing of the bottom of the cylinder block is sometimes required.
We have customers making over 1000 RWHP with Spool Conrods, check out the project cars here.
| Product Name | Spool Toyota 4AGE Conrods |
|---|---|
| Brands | Spool |
| Engine | 4AGE |
| Make | Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use ARP conrod bolts, usually ARP2000 as standard with L19 or CA625+ available on some models. ARP2000 bolts are generally torqued to around 55 ft-lb for 3/8 inch and around 75 ft-lb for 7/16 inch when using ARP Ultra-Torque lube. L19 bolts must be tightened by stretch, not torque. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
What is the big end tunnel size for the Spool Toyota 4AGE conrods?
The Spool Toyota 4AGE conrods feature a big end tunnel size of 45mm, designed to suit a 42mm crank journal.
What is the small end pin size for these conrods?
The small end pin size for the Spool Toyota 4AGE conrods is 20mm.
What is the centre to centre length of these conrods?
The centre to centre length of the Spool Toyota 4AGE conrods is 122mm, with an alternative option available at 135mm.
Do I need to modify the cylinder block when installing these conrods?
Yes, due to variations in the numerous different models of 4AGE engines, clearancing of the bottom of the cylinder block is sometimes required when installing these conrods.
What is the weight of the Spool Toyota 4AGE conrods?
Each Spool Toyota 4AGE conrod weighs approximately 466 grams.
