CP Pistons Toyota 4AG 20V
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

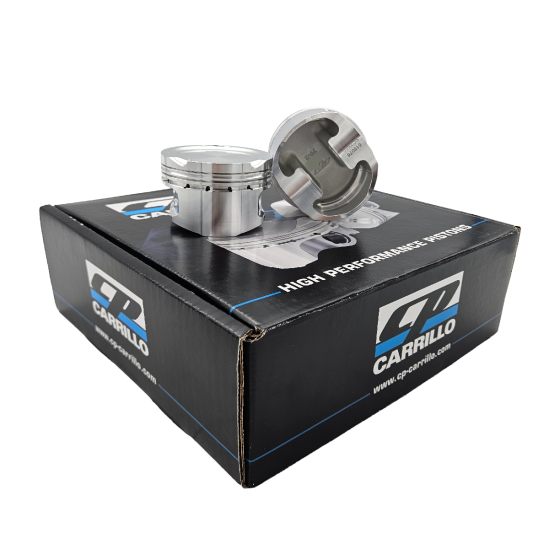

CP Pistons for Toyota 4AG 20V Engines
Enhance the performance of your Toyota 4AG 20V engine with CP Pistons, designed for precision and durability. These high-quality pistons are engineered to deliver optimal performance, whether you're on the track or the street. Available in various bore sizes and compression ratios, CP Pistons offer the perfect fit for your specific engine needs.
Available Options:
- Bore: 81.5mm (+0.5mm) / Compression: 9.0:1 - Part#: SC7656
- Bore: 82mm (+1mm) / Compression: 9.0:1 - Part#: SC7657
- Bore: 81.5mm (+0.5mm) / Compression: 12.0:1 - Part#: SC7659
- Bore: 82mm (+1mm) / Compression: 12.0:1 - Part#: SC7660
Key Features:
- High-strength aluminum alloy construction for enhanced durability
- Precision CNC-machined for exact fit and performance
- Available in multiple bore sizes and compression ratios
- Ideal for both street and track applications
- Designed to withstand high-performance demands
Choose CP Pistons for your Toyota 4AG 20V engine and experience superior performance and reliability. Perfect for enthusiasts looking to upgrade their engine's capabilities.
| Product Name | CP Pistons Toyota 4AG 20V |
|---|---|
| Brands | CP Carrillo |
| Engine | 4AGE |
| Make | Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What information do I need to match these pistons to my engine?
You need the engine code, bore size, stroke, rod length, pin diameter and target compression ratio. These determine the correct piston compression height and crown design.
How should ring gaps be set for these pistons?
Ring gaps must be set by your engine builder based on fuel type, boost level and the intended rpm range. Forced-induction engines usually require larger gaps.
Are forged pistons suitable for street engines?
Yes. Forged pistons handle detonation and high cylinder pressure better than cast units. Your builder should set the piston-to-bore clearance to suit your application.
What bore sizes and compression ratios are available for the CP Pistons for the Toyota 4AG 20V?
The CP Pistons for the Toyota 4AG 20V are available in two bore sizes: 81.5mm (+0.5mm) and 82mm (+1mm). Each bore size comes with two compression ratio options: 9.0:1 and 12.0:1.
What material are the CP Pistons made from and how does it affect performance?
CP Pistons are constructed from a high-strength aluminum alloy, which enhances durability and performance. This material choice allows the pistons to withstand the high demands of both street and track applications.
Do I need to modify my engine for these CP Pistons?
While the CP Pistons are designed for a precise fit, you may need to ensure correct bore clearance and ring gaps during installation. It's essential to follow the manufacturer's specifications and perform any necessary machining to achieve optimal performance.
Can I use these pistons for both street and track applications?
Yes, the CP Pistons for the Toyota 4AG 20V are designed to perform well in both street and track environments, making them a versatile choice for enthusiasts looking to enhance their engine's capabilities.
What should I consider when selecting the compression ratio for my application?
When selecting a compression ratio, consider your intended use, fuel quality, and tuning setup. Higher compression ratios, like 12.0:1, can provide more power but may require higher-octane fuel and careful tuning to avoid knock.
