Spool RB25 - RB28 Stroker Kit with Custom CP Pistons

We carry a limited range of pistons for this kit in stock. If we don't have your exact requirements it will take 6-8 weeks to have pistons made.

USD$5,504.86
In stock
SKU
SPL-RB28Strokerkit-CP-RB25
+ -

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

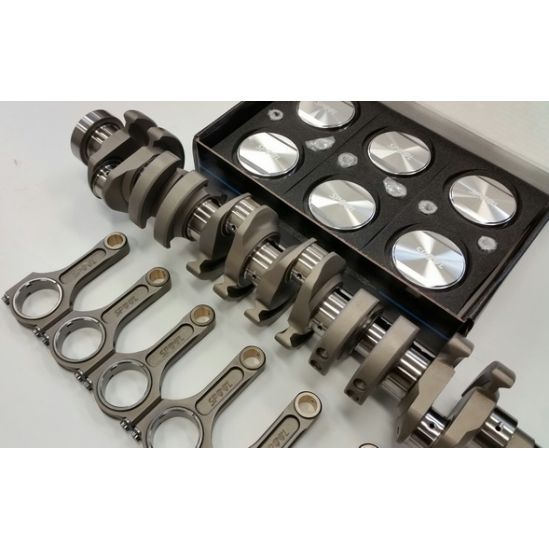

Nissan RB25/26 2.8 Litre Stroker Kit:

  • Spool Billet 4340 full counter weight 77.7mm Stroker Crankshaft
  • Spool H Beam Forged Connecting Rods with ARP-2000 Bolts (ARP L19 Bolts available as an upgrade)
  • CP Custom Pistons (rings, pins and locks included)
  • 9310 0.200" Gudgeon Pins standard (0.250" Pins available as an upgrade)

We can supply custom CP Pistons in any bore size or comp ratio - email for details.

Full billet 4340 Nitrided and Balanced Crankshaft

Note: The standard RB26 capacity is 2568cc

Using the 77.7mm stroker crank, std length conrods and custom pistons, the displacement is increased as follows:

  • 86.5mm bore and the 77.7mm stroker crank = 2740cc / 172cc increase
  • 87mm bore and the 77.7mm stroker crank = 2771cc / 203cc increase

With the increased cubic capacity from the 77.7mm stroker crank, big increases in torque and low to mid range power are achievable. Boost will come on earlier in the rev range and peak power will increase.

CP pistons come with rings, pins and locks. The gudgeon pins are upgraded to 9310 hardened alloy steel with 4.5mm wall thickness.

Note: Clearancing of the cylinder block is sometimes required.

More Information
Product Name Spool RB25 - RB28 Stroker Kit with Custom CP Pistons
Brands Spool
Engine RB25
Make Nissan
