Nissan RB25DET Rebuild Kit with Spool Drag Pro I Beam Conrods and Ross Racing Forged Pistons
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Nissan RB25DET Rebuild Kit with and Spool Drag Pro I Beams /Ross Racing Forged Pistons

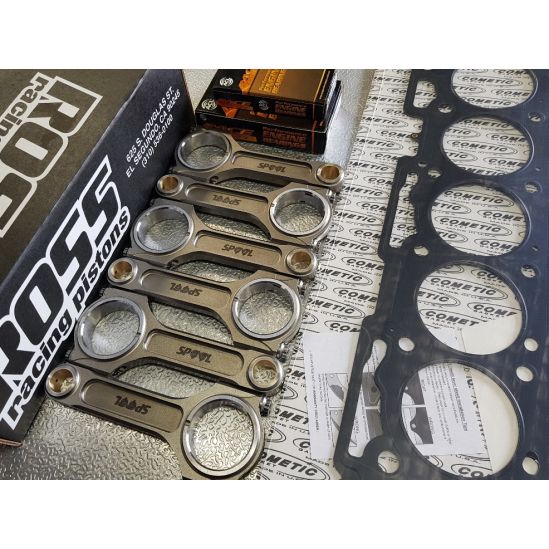

This Rebuild Kit includes the following quality parts:
- Spool Drag Pro I Beam Connecting Rods (ARP 2000 7/16 Bolts)
- Ross Forged Pistons (Rings, Pins and Locks Included)
- Cometic MLS Head Gasket
- ACL Race Series Main Bearings - STD or 0.25mm
- ACL Race Series Big End Bearings - STD or 0.25mm
Ross Racing Pistons Feature:
These Pistons are custom made for Spool and rated at 900-1000hp by Ross Racing Pistons.With upgrade pins Ross rate these pistons up to 250 bhp per cylinder.
- Compression Ratio:9.0:1 - 9.5:1
- Bore Sizes: +0.5mm and +1mm
- Pistons come with NPR Gas Nitrided top ring, three pcs. oil
- 0.225” wall Carbon steel (upgrade to H13 available)
- Forged 2618
- Locks
All of Ross Racing Pistons (since 1985) have been forged from 2618 billet bar stock and have been heat treated and aged to a T61 condition (2618-T61). 2618-T61 is the material that is used when fatigue resistance and durability are of prime importance by all premium racing piston manufacturers.
This material has less than 1% silicon particulate content. High silicon content pistons (forged from 4032 or MS75) will not stand up to the most extreme stress placed on many racing pistons. If a crack starts to form in a high silicon piston it will continue until the piston experiences a catastrophic failure. Simply stated, adding sand to the aluminum only makes it more brittle. In the rare instance of a 2618-T61 piston cracking, the crack will continue to an area where the stress is not as great and will then stop. Another advantage of 2618-T61 over the high silicon pistons is the ability to keep its shape under extreme pressure and high RPM's. "Skirt Shrinking" is not a problem with ROSS Racing Pistons.
Spool Drag Pro I Beam connecting rods are the ultimate high strength direct fit conrod for all Nissan RB25DET engines.
- Upgraded ARP2000 7/16 bolts
- Increased strength to the beam
- Increased strength around the fasteners / bolts
- Increased strength around the gudgeon pin
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout. If you are unsure get in touch with sales@spoolimports.com
Note: We recommend Joe Gibbs Break in Oil for all new engines.
| Product Name | Nissan RB25DET Rebuild Kit with Spool Drag Pro I Beam Conrods and Ross Racing Forged Pistons |
|---|---|
| Brands | Spool |
| Engine | RB25 |
| Make | Nissan |
