Spool High-Quality AN-12 Nylon Braided Hose with 11/16 inch diameter

Spool Nylon Braided Hose - AN-12 - 11/16" 17.4mm/ 31/32" 24.4mm

Skip to the beginning of the images gallery

Spool Nylon Braided Hose - AN-10 - 9/16" 14.2mm/ 53/64" 20.8mm

Name: Spool Nylon Braided Hose - AN-10 - 9/16" 14.2mm/ 53/64" 20.8mm
Brand: Spool
SKU: SF-0723-10-M
Price: 33 AUD
Availability: InStock

Trade and quantity enquiries welcome. Phone 07 5645 1335 8am to 2pm AET or email [email protected]

Be the first to review this product

AUD$30.00

In stock

SKU

SF-0723-10-M

Quantity:

+ -

Add to Compare

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

Details

More Information

DELIVERY & FREIGHT

DISCLAIMER

Faq

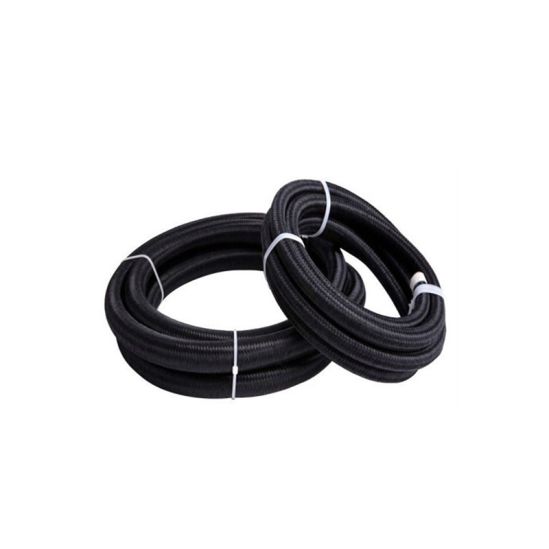

SPOOL NYLON BRAIDED HOSE

Spool Nylon Braided Hose - AN-10 - 9/16" 14.2mm/ 53/64" 20.8mm

Inner Material:	CPE synthetic rubber
Outer Material:	All black Nylon
Size:	AN4 to AN20
Temperature:	-40°C to 150°C
Pressure:	2000 PSI
Usage:	Tuning Parts, Oil, e85, Fuel Line

Nylon fiber and stainless steel braid cover for excellent flexibility and resistance to abrasion. Outer nylon braided has excellent inflaming and is safer to use.

The braided nylon outer shield protects the hose when it rubs on the engine or other car parts, inner core is stainless steel. It is safe in temperatures from -40 degrees Fahrenheit to 150 degrees Fahrenheit.

Inner: A flexible stainless steel inner core for superior strength embedded in the Chlorinated Polyethylene (CPE) synthetic rubber liner
Outer: Constructed with a braided nylon outer shield for abrasion resistance
For use with fuel systems, methanol, oils, lubricants, coolant systems, and vacuum applications
Minimum temperature -40°C, Maximum temperature 150°C

Spool Series	Size	I.D.	O.D.	Operation Press	Burst Press
SF-0723-4-M	AN4	7/32"	7/16"	500 PSI	2000 PSI
SF-0723-5-M	AN5	1/4"	1/2"	500 PSI	2000 PSI
SF-0723-6-M	AN6	11/32"	9/16"	500 PSI	2000 PSI
SF-0723-7-M	AN7	3/8"	5/8"	500 PSI	2000 PSI
SF-0723-8-M	AN8	7/16"	11/16"	500 PSI	2000 PSI
SF-0723-9-M	AN9	1/2"	23/32"	500 PSI	2000 PSI
SF-0723-10-M	AN10	9/16"	53/64"	500 PSI	2000 PSI
SF-0723-12-M	AN12	11/16"	31/32"	350 PSI	1400 PSI
SF-0723-16-M	AN16	7/8"	13/64"	350 PSI	1400 PSI
SF-0723-20-M	AN20	1-1/8"	1-13/32"	350 PSI	1400 PSI

Application:

Nylon and stainless steel braided CPE fuel hose can be used with transmission fluid, coolant, oil, pump gas, race gas, vacuum, hydraulic fluid, diesel, and fuel
Commonly used as transmission oil cooler line, fuel return line, fuel supply line, coolant fluid hose, carburetor fuel hose, turbo cooler line, oil feed line, LS swap fuel line

More Information
Product Name	Spool Nylon Braided Hose - AN-10 - 9/16" 14.2mm/ 53/64" 20.8mm
Brands	Spool

Delivery & Freight

We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.

You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .

If you only see the Click and Collect shipping option, it means that your address was not validated correctly.

If you have issues calculating freight, please get in touch. We are happy to help.

Disclaimer:

Product images are for description purposes only. Actual product may vary.

Shipping calculations available at checkout.

If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).

What is the difference between nylon and stainless braided hose?

Nylon braided hose is lighter and easier to work with. Stainless is more abrasion-resistant and suited to harsher environments.

How do I correctly assemble AN hose ends?

Cut the hose square, clean debris, and follow the fitting manufacturer’s assembly instructions carefully to avoid leaks.

What is the maximum pressure rating for the Spool Nylon Braided Hose - AN-10?

The Spool Nylon Braided Hose - AN-10 has a maximum pressure rating of 2000 PSI. Ensure that your application does not exceed this limit to maintain safety and performance.

What fluids can I use with the Spool Nylon Braided Hose - AN-10?

This hose is suitable for a variety of fluids including transmission fluid, coolant, oil, pump gas, race gas, vacuum, hydraulic fluid, diesel, and fuel. It's versatile for many automotive applications.

What temperature range can the Spool Nylon Braided Hose - AN-10 handle?

The hose can operate safely within a temperature range of -40°C to 150°C. This makes it suitable for a wide range of automotive environments.

Do I need to modify the hose for specific applications?

Depending on your specific setup, you may need to cut the hose to length and use appropriate AN fittings. Always ensure that the fittings are compatible with the hose size and application.

Is the Spool Nylon Braided Hose - AN-10 suitable for high-performance applications?

Yes, the Spool Nylon Braided Hose - AN-10 is designed for high-performance applications, including fuel systems and oil lines. Ensure proper installation and check for compatibility with your specific fluids and pressures.
