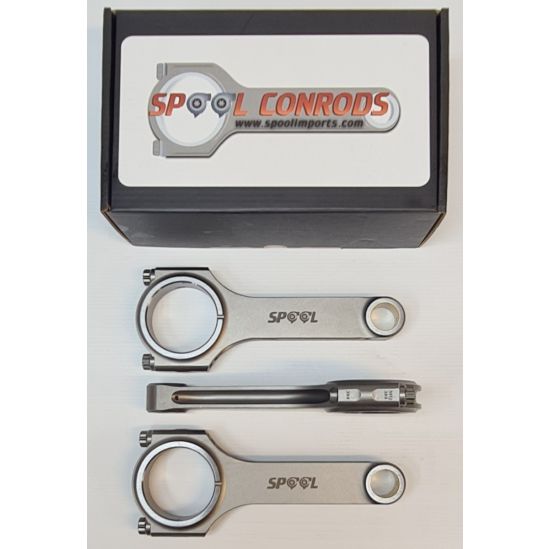

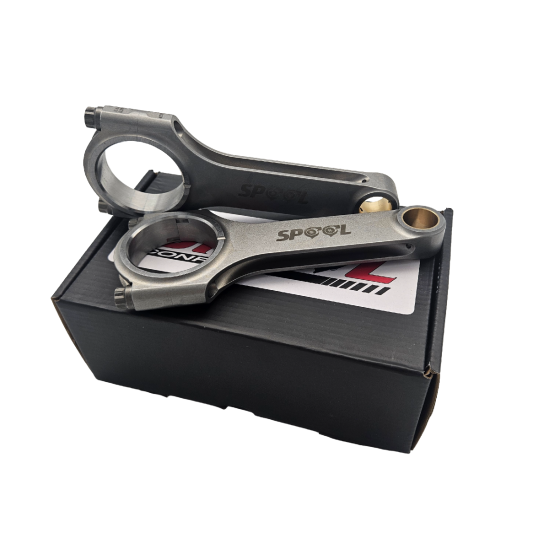

Spool Holden RB30 H beam Conrods
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
All Spool Conrods come standard with ARP 2000 Fasteners.
These are a direct fit conrod for all Nissan / Holden RB30 engines. There is no machining of any sort required. They suit RB30 NA, RB30 Turbo and RB30 engines with RB25 or RB26 heads fitted.
These conrods feature:
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets + - 1 gram
- Vacuum degassed to remove impurities.
No bearings are included.
Specifications:
Small End Pin Size: 21mm
Weight:598g (Std OEM conrods weigh 702g
We have customers making over 1000 RWHP with Spool Conrods, check out the project cars here.
| Product Name | Spool Holden RB30 H beam Conrods |
|---|---|
| Brands | Spool |
| Engine | RB30, RB30DET, RB30DET (DOHC), RB30ET, RB30ET (SOHC) |
| Make | Holden |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use ARP conrod bolts, usually ARP2000 as standard with L19 or CA625+ available on some models. ARP2000 bolts are generally torqued to around 55 ft-lb for 3/8 inch and around 75 ft-lb for 7/16 inch when using ARP Ultra-Torque lube. L19 bolts must be tightened by stretch, not torque. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
What is the weight of the Spool Holden RB30 H beam conrods compared to OEM?
The Spool Holden RB30 H beam conrods weigh 598g each, while the standard OEM conrods weigh 702g. This weight reduction can contribute to improved engine response and performance.
Are the Spool Holden RB30 H beam conrods compatible with RB25 or RB26 heads?
Yes, these conrods are designed to be a direct fit for all Nissan / Holden RB30 engines, including those fitted with RB25 or RB26 heads, without any machining required.
What materials and processes are used in the construction of these conrods?
The Spool Holden RB30 H beam conrods are made from high tensile 4340 forged steel and feature a two-piece forging design. They undergo processes such as quenching, heat treatment, shot peening, and are 100% Magnafluxed to ensure structural integrity.
What is the small end pin size for the Spool Holden RB30 H beam conrods?
The small end pin size for the Spool Holden RB30 H beam conrods is 21mm, which is compatible with the standard RB30 engine specifications.
Do the Spool Holden RB30 H beam conrods require any additional components for installation?
No bearings are included with the Spool Holden RB30 H beam conrods, so you will need to source the appropriate bearings separately for installation.
