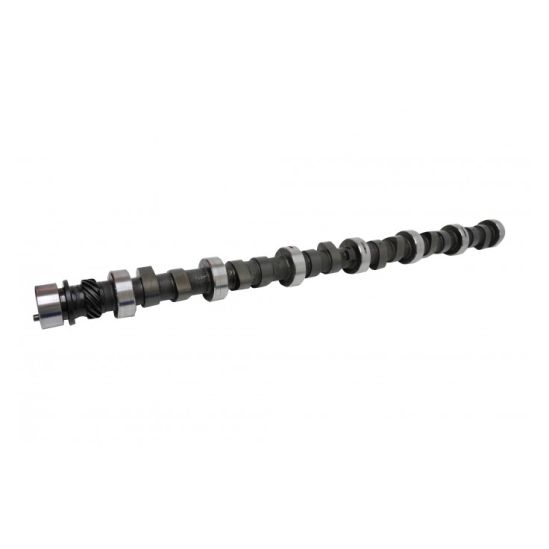

Kelford Cams Suit Nissan RB30 SOHC 226-G (284/292)
Description:
284/292 Degrees advertised duration, 13.70mm/13.70mm lift.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Additional Information:
Stage 3 cam to suit well modified street / strip engines. This cam is a great choice for motors using E85. Primary lobe specification is / Degrees advertised duration, lift.
 |
|||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | RB30 | 226-G | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 8.56mm | Exhaust: | 8.56mm | |||
| Rocker Ratio: | Intake: | 1.6 | Exhaust: | 1.6 | |||
| Nett Valve Lift: | Intake: | 13.70mm | Exhaust: | 13.70mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 284 | Exhaust: | 292 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 249 | Exhaust: | 255 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 14.5 BTDC | EVO: | 65.5 BBDC | ||
| IVC: | 54.5 ABDC | EVC: | 9.5 ATDC | ||||
| Suggested Centre Lines: | Intake: | 110 | Exhaust: | 118 | |||
| VALVE | Lift @ TDC | Intake: | 2.69mm | Exhaust: | 2.13 | ||
| Product Name | Kelford Cams Suit Nissan RB30 SOHC 226-G (284/292) |
|---|---|
| Brands | Kelford |
| Engine | RB30ET (SOHC) |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Why choose matched valve springs for performance cams?
Spring pressure must match the cam profile and rpm limit. Too little causes valve float; too much causes wear.
Do I need adjustable cam gears?
They allow fine-tuning of cam timing, especially useful after head machining or when running non-standard cams.
What type of engine modifications are suitable for the Kelford Cams 226-G?
The Kelford Cams 226-G is designed for well-modified RB30ET engines, particularly those running on E85 fuel. It's ideal for street and strip applications where enhanced performance is desired.
What is the recommended valve clearance for the Kelford Cams 226-G?
While specific valve clearance settings are not provided, it's crucial to set the clearance according to the engine builder's specifications, considering the cam's lift and duration to ensure optimal performance and prevent valve contact.
How does the lift and duration of the Kelford Cams 226-G affect engine performance?
With an advertised duration of 284 degrees for intake and 292 degrees for exhaust, along with a lift of 13.70mm, this cam profile enhances airflow at higher RPMs, improving power output in modified setups. However, tuning and supporting modifications are essential for achieving desired results.
What timing adjustments are recommended for the Kelford Cams 226-G?
For optimal performance, the suggested timing events for the Kelford Cams 226-G are 14.5 BTDC for intake opening and 65.5 BBDC for exhaust closing. Adjustments may be necessary based on the specific engine setup and tuning.
Is it necessary to use aftermarket valve springs with the Kelford Cams 226-G?
Yes, using high-performance aftermarket valve springs is recommended to handle the increased lift and duration of the Kelford Cams 226-G. This ensures proper valve control at higher RPMs and prevents valve float.
