Spool G180 and G200 Conrod and CP Forged Pistons
Spool 4ZE1 Conrod and CP Forged Pistons
These Pistons are Custom made to suit each order and take approx 8 weeks
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

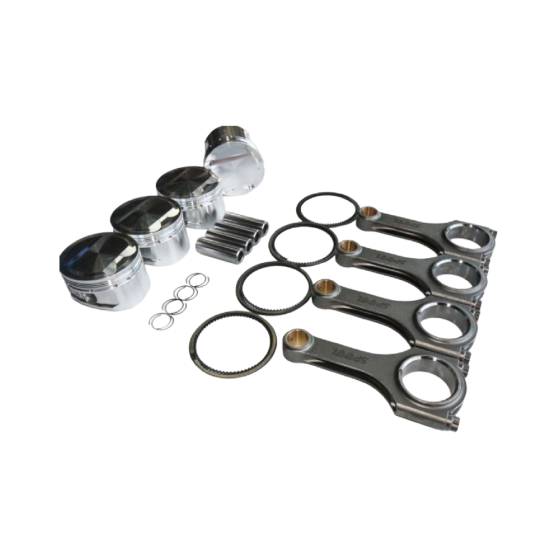

Spool 4ZE1 H Beam Forged Conrods and CP Forged Pistons
These custom pistons are available in any bore size and any compression ratio. Turn around time for pistons is generally 4-6 weeks if not in stock.
Pistons come with rings, gudgeon pins and pin locks.
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
CP Pistons standard features include:
- 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminium forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
Note: We recommend Joe Gibbs Break in Oil for all new engines.
| Product Name | Spool 4ZE1 Conrod and CP Forged Pistons |
|---|---|
| Brands | Spool |
| Engine | 4ZE1 and 4DE1 |
| Make | Holden, Isuzu |
