Raceworks 57L Combination Fuel Cell with 4.4L Surge Tank ALY-249BK
57L black aluminium fuel cell with an integrated 4.4L surge tank, removable triple-pump hanger and AN-10 plumbing ports. Provision for two internal lift pumps. Select pumps separately.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

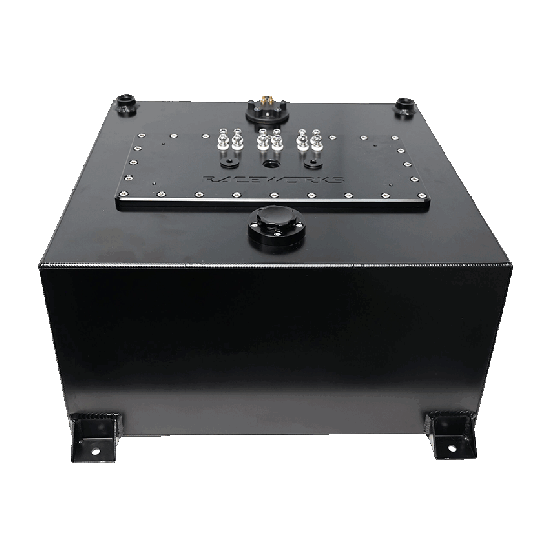

Raceworks 57L Combination Fuel Cell with 4.4L Surge Tank
The ALY-249BK combines fuel storage and surge control in one serviceable assembly. Its internal reservoir helps maintain fuel supply during acceleration, braking and cornering, while reducing external surge-tank plumbing.
Built for installation and servicing
Remove the pump hanger to assemble pumps and wiring on the bench. CNC-machined T6 aluminium construction, reinforced baffling, a double-anodised black finish and a 10mm hanger plate provide a rigid platform. A removable spill tray and lifting handles are pre-fitted.
Specifications
| Part number | ALY-249BK |
|---|---|
| Total fuel cell volume | 57L (15 gallons) |
| Internal surge tank | 4.4L |
| Feed pump support | 1–3 pumps, 38–40mm diameter |
| Lift pump provision | Up to two internal lift pumps |
| Feed | Single AN-10 ORB vortex-design outlet |
| Return / vent options | Four AN-10 ORB ports: two on tank, two in hanger |
| Electrical connections | Six sets of stainless-steel terminals; two FSA-521 blanking plugs supplied |
| Fuel level sender | 0–90 ohms |
| Seals and internal hose | Viton O-rings and Teflon hose; E85 and methanol suitable |
| Pump O-rings | 38mm and 39–40mm sets supplied; 39–40mm pre-fitted |
| Replacement hanger seal | RWM-030 |
| Product weight | Not stated by manufacturer |
Pump selection and fitment
Compatible feed pumps are: EFP-500, EFP-501, EFP-800, EFP-320, EFP-769, EFP-264, EFP-057, EFP-058, EFP-766, EFP-624, EFP-625, EFP-626, EFP-324, EFP-287, EFP-452, EFP-530, EFP-622 (no internal check valve) and EFP-723. The listed lift pump is EFP-089.
Pumps are selected separately. Confirm fuel compatibility, electrical control, venting and installation requirements. This cell as a direct bolt-in replacement for ALY-272BK and ALY-273BK.
| Product Name | Raceworks 57L Combination Fuel Cell with 4.4L Surge Tank ALY-249BK |
|---|---|
| Brands | Raceworks |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Does ALY-249BK include fuel pumps?
Select compatible feed and lift pumps separately. The removable hanger supports 1–3 feed pumps of 38–40mm diameter and provision for two internal lift pumps.
Is it suitable for E85 and methanol?
Raceworks specifies Viton O-rings and Teflon in-tank hose suitable for E85 and methanol. Pumps, filters and external plumbing must also suit the fuel.
What does it replace?
Raceworks identifies ALY-249BK as a direct bolt-in replacement for ALY-272BK and ALY-273BK. Confirm mounting space, plumbing and service clearance before ordering.
What are the external dimensions?
Contact Spool before ordering for a space-critical installation. The published manufacturer dimensions contain an inconsistency and require confirmation.
-
-
-
