PULSAR Billet S480 Turbo with 96mm Turbine wheel

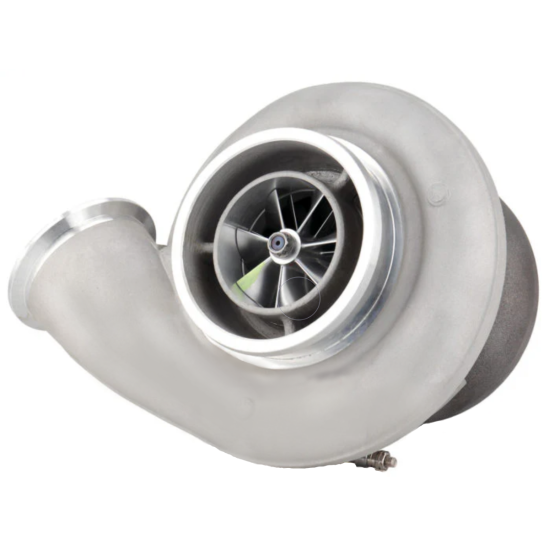

PULSAR Billet S475 Turbo with 96/88mm Turbine wheel
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Experience unparalleled performance with the PULSAR Billet S475 Turbo, engineered for enthusiasts seeking maximum power and efficiency. This turbocharger is designed to deliver exceptional aerodynamics and high-temperature resilience, making it a top choice for serious tuners.
Key Features:
- Advanced Compressor Wheel: Features a 7+7 blade 75mm x 101.5mm billet compressor wheel with extended tip technology, ensuring optimal airflow and performance.
- Durable Turbine Wheel: Equipped with a robust S400 96mm x 88mm Inconel 713 turbine wheel, crafted for superior high-temperature endurance.
- Versatile Turbine Housings: Choose from T6 divided turbine housings in 1.32 A/R or 1.58 A/R, featuring a 5" V-band outlet and a 5.75" OD Marmon flange, or opt for a T4 divided turbine housing in 1.25 A/R.
- Impressive Power Capability: Compressor flow rated at 120 lb/min, supporting horsepower outputs from 750 to 1400 HP.
- Important Note: Outlet flange and clamp are not included.
Upgrade your vehicle's performance with the PULSAR Billet S475 Turbo, designed for those who demand the best in power and reliability.
| Product Name | PULSAR Billet S475 Turbo with 96/88mm Turbine wheel |
|---|---|
| Brands | Pulsar |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
How do I choose the right turbo size?
Turbo selection depends on engine size, boost target, rpm range and desired response. A smaller turbo spools faster; a larger turbo supports more top-end power.
Why is wastegate placement important?
Poor placement or sizing can cause boost creep or unstable boost control.
What is the recommended application for the PULSAR Billet S475 Turbo?
The PULSAR Billet S475 Turbo is ideal for high-performance applications, supporting horsepower outputs between 750 to 1400 HP. It is well-suited for serious tuners looking to maximise power and efficiency in their builds.
What are the turbine housing options for the PULSAR Billet S475 Turbo?
This turbocharger offers versatile turbine housing options, including T6 divided housings in 1.32 A/R or 1.58 A/R, and a T4 divided housing in 1.25 A/R. Each option allows for tailored performance characteristics depending on your specific setup.
What is the significance of the Inconel turbine wheel in the PULSAR Billet S475 Turbo?
The Inconel 713 turbine wheel provides superior high-temperature endurance, making it suitable for extreme conditions often encountered in high-performance applications. This material helps maintain structural integrity and performance under high boost levels.
What should I consider regarding the compressor flow rating of the PULSAR Billet S475 Turbo?
With a compressor flow rating of 120 lb/min, it's crucial to ensure that your engine setup, including fuel delivery and tuning, can support the airflow this turbo provides. Proper matching of components is essential for achieving optimal performance and reliability.
Are there any additional components needed for installation of the PULSAR Billet S475 Turbo?
Yes, please note that the outlet flange and clamp are not included with the turbocharger. Ensure you have the necessary components for a complete installation, including appropriate piping and fittings to match your setup.
-
-
-
-
-
