Performance Springs Toyota 1HDT 6 2V Single Valve Springs – PS 1006
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

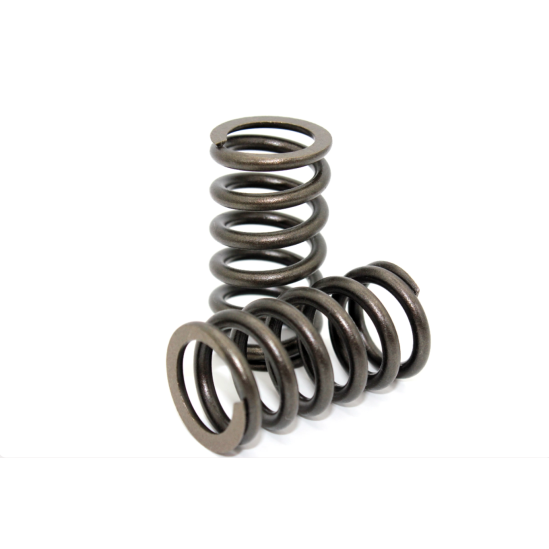

Performance Springs PS 1006 Single Valve Springs are designed specifically for the Toyota 1HDT 6 2V engine.
These performance valve springs are designed to provide improved valve train control for Toyota 1HDT applications, with a maximum specified valve lift of 0.470".
The PS 1006 installs at 1.46" / 37 mm installed height, providing 70 lb of seated pressure and 160 lb of open pressure at 1.06" / 26.9 mm lift.
The springs have a 22.2 mm coil bind height and are designed for use with standard (STD) retainers.
A complete Toyota 1HDT 6 2V engine requires 12 × PS 1006 valve springs. When ordering a complete engine set, the required quantity is 12 springs.
Spring Specifications
- Engine Model: 1HDT 6 2V
- Spring Type: Single Valve Spring
- Maximum Valve Lift: 0.470"
- Retainers: Standard (STD)
- Installed Height: 1.46" / 37 mm
- Seated Pressure: 70 lb
- Open Pressure: 160 lb @ 1.06" / 26.9 mm lift
- Coil Bind: 22.2 mm
Application
- Toyota 1HDT
- Toyota 1HDT 6 2V
- Toyota 1HDT performance applications
What's Included
- 12 × Performance Springs PS 1006 Single Valve Springs
Important Installation Information:
Always verify installed height, valve lift, spring pressure, coil bind clearance, retainer compatibility and all other dimensions against the specific engine and cylinder head configuration before installation.
Performance Valve Springs states that it is the installer's responsibility to check and recheck all dimensions, pressures, applications and specifications before, during and after installation. The supplier also specifies an approximate ±8% tolerance on valve spring pressure specifications.
| Product Name | Performance Springs Toyota 1HDT 6 2V Single Valve Springs – PS 1006 |
|---|---|
| Brands | Performance Springs |
| Engine | 1HDT |
| Make | Toyota |
