Nissan RB30DET (DOHC) Rebuild Kit with Spool H Beam Conrods and CP Forged Pistons (8.5:1)
These are to suit RB30 block with either RB25 or RB26 cylinder head
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
These are a flat top piston with no valve reliefs

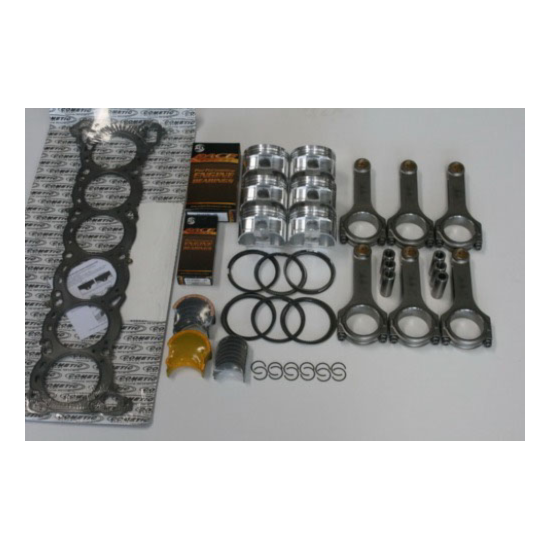

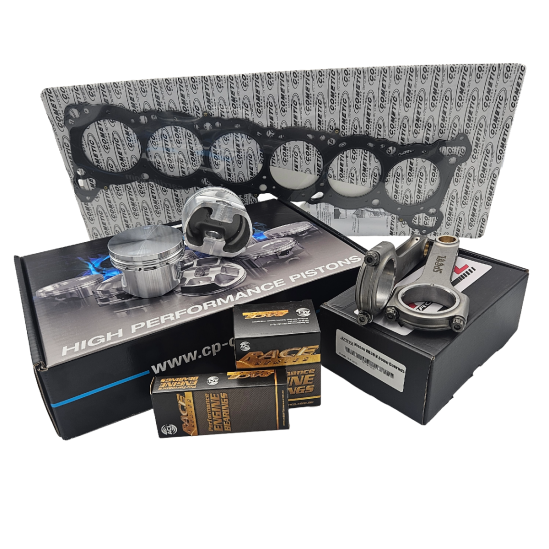

This Rebuild Kit includes the following quality parts:
- Spool Forged H Beam Conrods
- CP Forged Pistons (Rings, Pins and Locks Included)
- CP Pistons 8.5:1 compression Ratio designed specifically for the RB30 block using either RB25 or RB26 cylinder head
- Cometic MLS Head Gasket
- ACL Race Series Main Bearings - STD or 0.25mm
- ACL Race Series Big End Bearings - STD or 0.25mm
Upgraded Pin options - 9310 - 0.250"(6.25mm), 0.200"(5mm) and 0.180"(4.125mm)
Pistons are available in:
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
CP Pistons standard features include:
- 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminium forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
Note: We recommend Joe Gibbs Break in Oil for all new engines.
| Product Name | Nissan RB30DET (DOHC) Rebuild Kit with Spool H Beam Conrods and CP Forged Pistons (8.5:1) |
|---|---|
| Brands | Spool |
| Engine | RB30DET (DOHC) |
| Make | Holden, Nissan |
