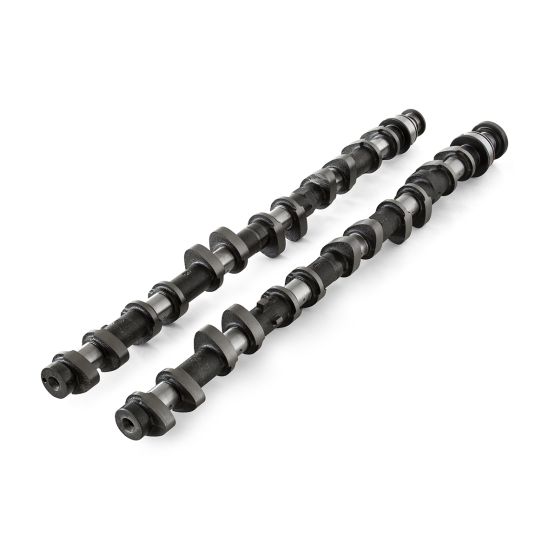

Kelford Cams - suit Toyota 1FZ-FE 225-T1 (276/284)
Description:
276/284 Degrees advertised duration. 10.35mm/10.55mm lift.
USD$1,040.73
Availability: In stock
SKU
225-T1
Additional Information:
1FZ-FE Turbo cams for high HP engine builds.
 |
|||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 1FZ-FE | 225-T1 | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 10.60mm | Exhaust: | 10.85mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 10.35mm | Exhaust: | 10.55mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 276 | Exhaust: | 284 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 238 | Exhaust: | 246 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 9 BTDC | EVO: | 58 BBDC | ||
| IVC: | 49 ABDC | EVC: | 8 ATDC | ||||
| Suggested Centre Lines: | Intake: | 110 | Exhaust: | 115 | |||
| VALVE | Lift @ TDC | Intake: | 1.91mm | Exhaust: | 1.77 | ||
| Product Name | Kelford Cams - suit Toyota 1FZ-FE 225-T1 (276/284) |
|---|---|
| Engine | 1FZ-FE |
| Make | Toyota |
