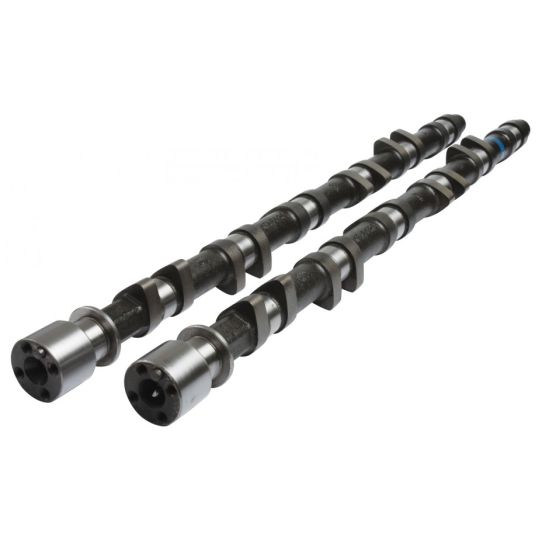

Kelford Cams RB26DETT Camshafts 288/292 (182-SF)
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Additional Information:
288/280 Degree split lobe cams to suit high RPM, high HP engines, especially good with E85 fuel.
 |
|||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | RB26DETT | 182-SF | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 11.35mm | Exhaust: | 11.35mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 11.10mm | Exhaust: | 11.10mm | |||
| Advertised Duration @ | 0.35mm | Intake: | 288 | Exhaust: | 292 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 248 | Exhaust: | 254 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 12 BTDC | EVO: | 67 BBDC | ||
| IVC: | 56 ABDC | EVC: | 7 ATDC | ||||
| Suggested Centre Lines: | Intake: | 112 | Exhaust: | 120 | |||
| VALVE | Lift @ TDC | Intake: | 2.29mm | Exhaust: | 1.64 | ||
| Product Name | Kelford Cams RB26DETT Camshafts 288/292 (182-SF) |
|---|---|
| Brands | Kelford |
| Engine | RB26 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Why choose matched valve springs for performance cams?
Spring pressure must match the cam profile and rpm limit. Too little causes valve float; too much causes wear.
Do I need adjustable cam gears?
They allow fine-tuning of cam timing, especially useful after head machining or when running non-standard cams.
What are the recommended valve clearances for the Kelford Cams RB26DETT Camshafts 288/292?
The recommended valve clearance for both the intake and exhaust valves is 0.25mm, set cold at the cam. Ensure to check and adjust clearances during installation to maintain optimal performance.
What type of fuel works best with the Kelford Cams RB26DETT Camshafts 288/292?
These camshafts are particularly suited for high RPM, high horsepower applications and perform exceptionally well with E85 fuel. Ensure your engine is tuned appropriately to take advantage of the fuel's properties.
What is the lift specification for the Kelford Cams RB26DETT Camshafts 288/292?
Both the intake and exhaust camshafts have a lift of 11.35mm. This lift is designed to enhance airflow at high RPM, contributing to increased power output.
What is the duration of the Kelford Cams RB26DETT Camshafts 288/292?
The intake cam has an advertised duration of 288 degrees, while the exhaust cam has a duration of 292 degrees. This split duration is designed to optimise performance in high RPM scenarios.
What are the suggested centre lines for the Kelford Cams RB26DETT Camshafts 288/292?
The suggested centre lines are 112 degrees for the intake cam and 120 degrees for the exhaust cam. Proper alignment during installation is crucial for achieving the desired performance characteristics.
