Holden V6 Alloytec GM LY7, LTT, LFX - Spool H Beam Conrods and CP Forged Pistons

These custom CP pistons can also be arranged for the LFX and LLT V6 Engines and will take 6-8 weeks to have made
EUR€2,065.23
In stock
SKU
SPL-Alloytec-H-CP
+ -

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

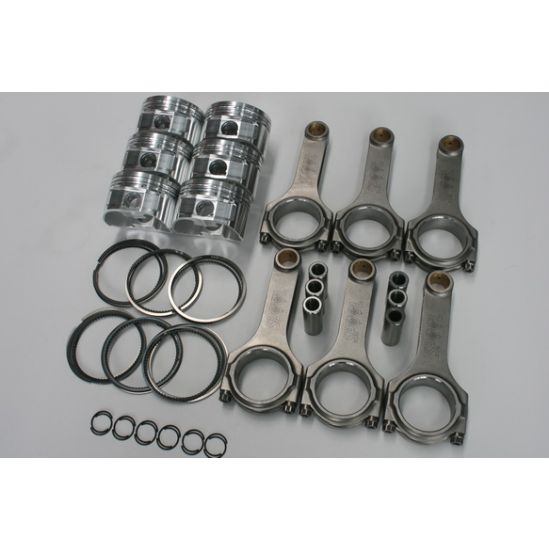

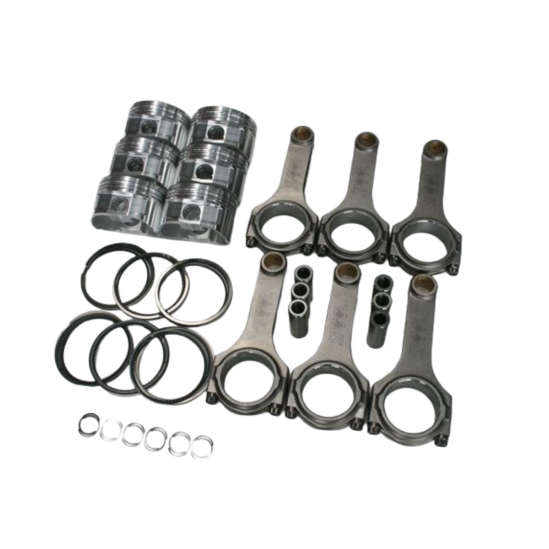

SPOOL GM LY7 - Holden 3.6L V6 Alloytec Conrods and CP custom forged Pistons are now available.

Custom CP pistons can also be arranged for the LFX and LLT Engines.

As these are custom made pistons they can be ordered in most bore sizes and compression ratio's . Turn around time for pistons is generally 6-8 weeks if not in stock.

Pistons come with rings, gudgeon pins and pin locks.

Spool Connecting Rods Feature:

  • ARP 2000 fasteners (L19 fasteners are available as an upgrade)
  • High tensile 4340 forged steel
  • 2 Piece forging
  • Hardness of HRC36-42
  • Dowelled caps for precision alignment
  • X-RAY & Sonic tested
  • Quenching and heat treated
  • Shot peened
  • 100% Magnafluxed
  • Weight Matched Sets +/- 1 gram
  • Vacuum degassed to remove impurities

CP Pistons standard features include:

  • 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
  • Deep valve reliefs accommodate high lift camshafts
  • Larger valve reliefs for +1mm valve sizes
  • Custom skirt cam and barrel design
  • Accumulator grooves
  • High strength aluminium forgings
  • High performance rings
  • Fully CNC machined and balanced to +/- 1 gram
  • Wrist pins included
  • Double pin oilers force fed from oil ring groove
  • Pick lock grooves for easy lock removal
  • Pin fitting included

Note: We recommend Joe Gibbs Break in Oil for all new engines.

More Information
Product Name Holden V6 Alloytec GM LY7, LTT, LFX - Spool H Beam Conrods and CP Forged Pistons
Brands Spool
Engine Alloytec 3.6L V6
Make Holden
