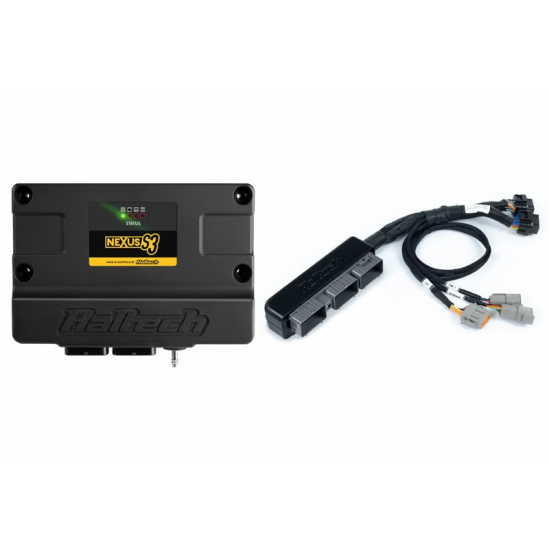

Haltech Nexus S3 Plug 'n' Play Adapter Harness Kit - Toyota Supra JZA80

Name: Haltech Nexus S3 Plug 'n' Play Adapter Harness Kit - Toyota Supra JZA80
Brand: Haltech
SKU: HT-213324
Price: 3960 AUD
Availability: InStock

Be the first to review this product

AUD$3,600.00

SKU

HT-213324

Quantity:

+ -

Add to Compare

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

Details

More Information

DELIVERY & FREIGHT

DISCLAIMER

Suits: Plug 'n' Play replacement of the factory ECU for Toyota Supra JZA80 2JZ non VVTi with manual transmission only.

Includes: Nexus S3 ECU, overmoulded plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 12 Pin DTM12-12P and pins.

Notes: Manual transmission only.

ECU OVERVIEW

Haltech's Nexus S3 is the successor to the acclaimed Elite 2500, offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.

8 x peak/hold injector drivers (can be used as low side drive outputs)
8 x low current ignition outputs (can be used as low side drive outputs)
6 x low side drive outputs, PWM capable (DPOs)
4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
1 x ECR output
11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
1 x on-board wideband controller, supporting NTK and LSU4.9
1 x on-board 4 bar MAP sensor
2 x CAN ports with switchable termination

If you are using a factory harness and are after an easy ECU upgrade, take a look at Haltech Plug 'n' Play Adapter Kits. These adapters plug directly into your Haltech ECU and have a set of factory connectors on the other side which plug straight into the factory harness.

A simple Haltech Plug 'n' Play product that allows you to be up and running in just a few hours.
The quick start guide will walk you through installation of the Haltech Plug 'n' Play adapter into your vehicle.

More Information
Product Name	Haltech Nexus S3 Plug 'n' Play Adapter Harness Kit - Toyota Supra JZA80
Brands	Haltech
Make	Toyota
