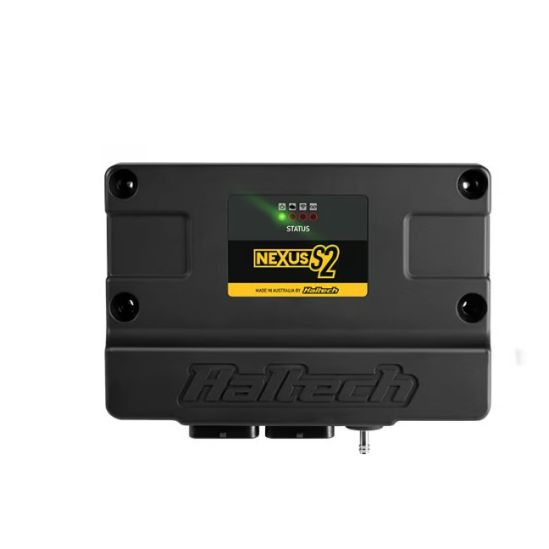

Haltech Nexus S2 VCU (HT-212000)

Haltech Nexus S2: The Next Generation Performance ECU

The Nexus S2 is the successor to the acclaimed Elite 1500, delivering a significant upgrade in performance and functionality. Combining the classic features of the Elite 1500 with advanced capabilities, the S2 leverages the superior processing power of the Nexus platform.

• 4 x peak/hold injector drivers (can be used as low side drive outputs)
• 4 x low current ignition outputs (can be used as low side drive outputs)
• 6 x low side drive outputs, PWM capable (DPOs)
• 4 x push-pull / half bridge outputs (8A, PWM capable) for electronic throttle control
• 1 x ECR output
• 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pull-up
• Trigger and home inputs with differential inputs, adjustable thresholds, and glitch filters
• 6 x synchronous pulsed inputs for cam sensor, frequency, or 0-5V analog inputs with zero crossing or adjustable thresholds
• 1 x on-board wideband controller, supporting NTK and LSU4.9
• 1 x on-board 4 bar MAP sensor
• 2 x CAN ports with switchable termination

Experience the next level of engine management with the Haltech Nexus S2.
