Raceworks EFP-500 E85 340LPH High-Flow In-Tank Fuel Pump
The Raceworks EFP-500 is a compact high-volume in-tank fuel pump designed for performance street and track fuel systems. It delivers 340 litres per hour at 3 bar when supplied with 13.5 volts and is suitable for both E85 and pump-fuel applications.

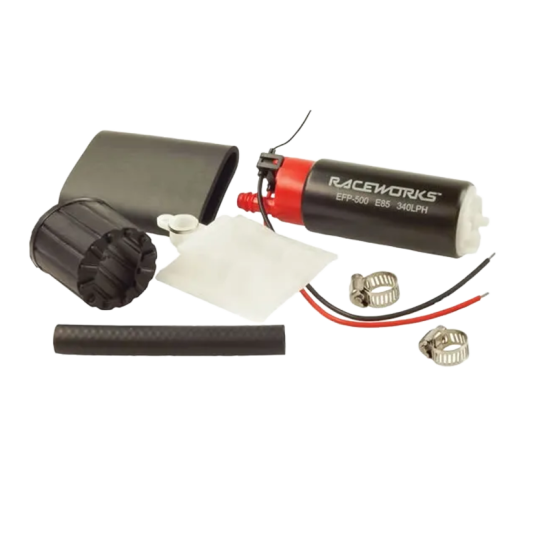

Its 39 mm body is designed to suit a wide range of original-equipment pump modules, although installation and electrical requirements must be checked for each vehicle. The pump incorporates an internal check valve and is supplied with a 90-degree strainer, wiring tail, hose, clamps and installation components as pictured.
Features
- 340 LPH flow at 3 bar and 13.5 V
- Suitable for E85 and pump fuel
- Compact 39 mm pump diameter
- Supports fuel-system pressures up to 6 bar
- Internal check valve
- Supplied with a 90-degree inlet strainer
- Wiring tail and installation hardware included as pictured
- Universal in-tank application
Specifications
| Part number | EFP-500 |
|---|---|
| Fuel-pump type | High-flow in-tank electric pump |
| Rated flow | 340 LPH at 3 bar, 13.5 V |
| Pump diameter | 39 mm |
| Maximum stated line pressure | Up to 6 bar |
| Fuel compatibility | E85 and pump fuel |
| Check valve | Internal |
| Included strainer | 90-degree |
| Fitment | Universal; installation requirements vary by vehicle |
Installation Notes
Raceworks recommends upgraded fuel-pump wiring for this pump so it can receive adequate voltage and current. The pump has a third wire that is a shielding wire and must be left disconnected. Confirm pump-module dimensions, outlet arrangement, electrical capacity and fuel-system requirements before ordering.
An optional 45-degree strainer is available separately under part number FPS-051. This number identifies the optional strainer, not the EFP-500 fuel pump.
| Product Name | Raceworks E85 340LPH High-Flow In-Tank Fuel Pump |
|---|---|
| Brands | Raceworks |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What flow does the Raceworks EFP-500 provide?
It is rated at 340 litres per hour at 3 bar when supplied with 13.5 volts. Actual flow changes with pressure and available voltage.
Is the EFP-500 suitable for E85?
Yes. Raceworks specifies the pump for both E85 and pump fuel.
What diameter is the pump?
The pump body is 39 mm in diameter. Check the vehicle's pump module, outlet layout and installation space before ordering.
What should be done with the third wire?
The third wire is a shielding wire and Raceworks instructs that it be left disconnected.
Which strainer is included?
A 90-degree strainer is included as pictured. The optional 45-degree strainer is sold separately as FPS-051.
Does this pump require upgraded wiring?
Raceworks recommends upgraded wiring so the pump receives adequate voltage and current under load.
-
