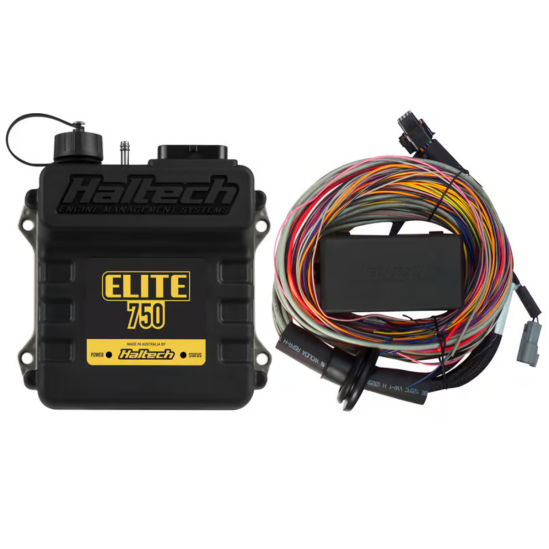

Haltech Elite 750 + Premium Universal Wire-in Harness Kit Length: 2.5m (8')

<div class="mt-3 mb-2"><strong>Elite 750 ECU Overview</strong></div>
<p>The Haltech Elite 750 is an entry-level ECU offering many of the advanced features found in the more powerful Elite 1500 and 2500 models, making it an excellent choice for enthusiasts and tuners looking for performance at an affordable price. Compact and powerful, the Elite 750 is ideal for a wide range of applications, from street cars to race vehicles, with its robust, environmentally sealed, waterproof case (IP67 rated) ensuring durability in any conditions.</p>

<p>Designed to offer advanced features such as on-board data logging, flex fuel tuning, and six fuel and ignition channels, the Elite 750 brings cutting-edge technology to tuners and performance enthusiasts worldwide. Powered by Haltech’s Nexus Software Programmer (NSP), it offers superior functionality and ease of use, making it a highly versatile ECU for various engine configurations.</p>

<div class="mt-3 mb-2"><strong>Key Features:</strong></div>
<ul>
  <li><strong>Supports 1 to 12 Cylinder Engines</strong> – Ideal for a broad range of engine types.</li>
  <li><strong>1 to 3 Rotor Engines</strong> – Suitable for rotary engines, expanding the ECU's versatility.</li>
  <li><strong>Fuel and Ignition Control</strong> – 6 x Fuel Injection Outputs (peak and hold, 0-8A peak / 0-2A hold) and 6 x Ignition Outputs for comprehensive engine control.</li>
  <li><strong>Flexible Injection Patterns</strong> – Supports staged, sequential, semi-sequential, batch, or multipoint injection systems.</li>
  <li><strong>Ignition System Compatibility</strong> – Works with distributor ignition systems, multi-coil systems, and expanded CDI ranges, or Haltech Multiplex CDI systems.</li>
  <li><strong>Load Sensing Options</strong> – Choose from Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF) sensors to optimize load sensing.</li>
  <li><strong>Waterproof and Durable</strong> – IP67-rated waterproof case (with USB cover fitted) designed for harsh environments.</li>
  <li><strong>Advanced Connectivity</strong> – Connects to display dashes and expansion devices via CAN for further control and monitoring.</li>
</ul>

<div class="mt-3 mb-2"><strong>Inputs & Outputs:</strong></div>
<ul>
  <li><strong>2 x Dedicated Engine Position Inputs</strong> – Supports extensive trigger types for precise timing control.</li>
  <li><strong>2 x Digital Pulsed Inputs</strong> – For additional sensors such as cam and crank position sensors.</li>
  <li><strong>5 x Digital Pulsed Outputs</strong> – Control external devices like relays, solenoids, or additional actuators.</li>
  <li><strong>2 x Analogue Voltage Inputs</strong> – For monitoring air-fuel ratio or other key parameters.</li>
  <li><strong>3 x Dedicated Inputs</strong> – Specifically for Throttle Position, Coolant Temperature, and Air Temperature sensors.</li>
  <li><strong>Internal 3Bar MAP Sensor</strong> – Capable of measuring up to 200kPa of boost (2Bar/29psi) for forced induction applications.</li>
  <li><strong>45 Channels of I/O Expansion via CAN</strong> – Expand functionality with additional sensors or devices via CAN connectivity.</li>
</ul>

<div class="mt-3 mb-2"><strong>Communication and Software:</strong></div>
<ul>
  <li><strong>USB Laptop Communication (Windows)</strong> – Interface with your laptop for tuning and adjustments.</li>
  <li><strong>NSP Calibration Software</strong> – Easy-to-use, intuitive software for seamless ECU calibration and tuning.</li>
  <li><strong>34 Position AMP Connector</strong> – Ensures secure connections for all wiring requirements.</li>
</ul>

<div class="mt-3 mb-2"><strong>Harness Overview:</strong></div>
<p>The Universal Wire-in Harness is designed for ease of use and is ideal for dedicated race cars, engine swaps, and custom wiring jobs. One end of the harness comes with ECU connectors, while the other features unterminated wires that are color-coded and clearly labeled. This ensures that you can connect your Haltech ECU with ease and follow the wiring diagram for all engine connections. After loading your base map, you're ready to go!</p>
<p>The harness comes with a detailed wiring diagram, and the full ECU manual and software are provided on a CD or USB key to guide you through the installation and configuration process.</p>
