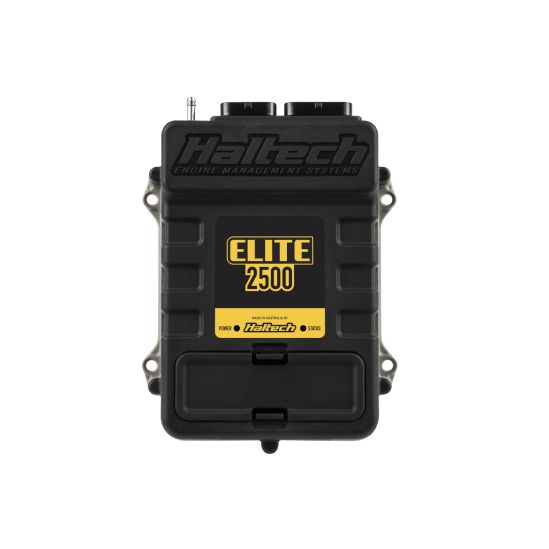

Haltech Elite 2500 + Premium Universal Wire-in Harness Kit Length: 2.5m (8')
Haltech Elite 2500 + Premium Universal Wire-in Harness Kit Length: 5.0m (16')
Outputs: Up to 8 injector and 8 ignition.
Suits: Recommended for 4, 6, 8 cylinder, Drive-By-Wire (DBW) or 2, 3, 4 rotor engines, EFI conversions, engines with multiple variable camshafts.
Includes: Elite 2500 ECU with DBW and Race Functions. Premium Universal Wire-In Harness. Firewall grommet, moulded 6 power circuit fuse box and lid. 4 relays, 7 fuses and pins for the 2 spare power circuits. USB programming cable.
Notes: Top of the range, two-connector ECU. Ideal for popular late model performance and racing applications.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
- Supports **1 to 12 Cylinder engines**
- Supports **2 to 4 Rotor engines**
- Suitable for **Normally aspirated** or **Forced induction** engines
- Load sensing via **Throttle Position (TPS)**, **Manifold Absolute Pressure (MAP)**, or **Mass Air Flow (MAF)** sensors
- Injection patterns include **Staged**, **Sequential**, **Semi-sequential**, **Batch**, or **Multipoint**
- Ignition systems include **Distributor ignition**, **Multi-coil systems**, and **Haltech Multiplex CDI systems**
- Connect to a wide variety of **dashes**, displays, and expansion devices via **CAN**
- Durable **Waterproof Case (IP67)** (with pocket cover for USB connection)
- **AMP 26 & 34 Pin Superseal connectors**
- **8 x Fuel Injection Outputs** (peak and hold: **0-8A peak** / **0-2A hold**)
- **8 x Ignition Outputs**
- **12 x Digital Outputs** for flexible engine control
- **10 x Analogue Voltage Inputs** for precise data acquisition
- **4 x Synchronized Pulsed Inputs**
- **4 x Dedicated Inputs** (Dual Knock, Ignition Switch, Onboard MAP Sensor)
- **2 x Dedicated Engine Position Inputs** with extensive trigger type support
- Up to **45 Channels of I/O Expansion** via **CAN**
- **USB Laptop Communication** (Windows)
- Now using the powerful new **NSP Calibration Software** for optimized tuning
| Product Name | Haltech Elite 2500 + Premium Universal Wire-in Harness Kit Length: 5.0m (16') |
|---|---|
| Brands | Haltech |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Why use a Haltech ECU?
It provides full control of fuel, ignition, boost and safety strategies that a factory ECU cannot manage on a heavily modified engine.
What types of engines can the Haltech Elite 2500 support?
The Haltech Elite 2500 is designed to support a wide range of engines, including 4, 6, and 8-cylinder configurations, as well as 2, 3, or 4-rotor engines. It is suitable for both normally aspirated and forced induction setups.
What features does the Premium Universal Wire-in Harness offer?
The Premium Universal Wire-in Harness includes colour-coded and labelled wires that correspond to a detailed wiring diagram, simplifying the installation process. It is ideal for custom race car builds or engine conversions, ensuring a straightforward and error-free setup.
How does the Elite 2500 handle tuning and data acquisition?
The Elite 2500 provides up to 10 analogue voltage inputs and 12 digital outputs for precise data acquisition and flexible engine control. It also features USB laptop communication for easy tuning using the NSP Calibration Software.
What is the significance of the waterproof case in the Elite 2500?
The Elite 2500 is encased in a waterproof, IP67-rated housing, which protects the ECU from moisture and debris, making it suitable for harsh racing environments and ensuring reliable performance under extreme conditions.
What additional components are included with the Elite 2500 ECU?
The package includes the Elite 2500 ECU, the Premium Universal Wire-in Harness, a firewall grommet, a moulded 6 power circuit fuse box with lid, 4 relays, 7 fuses, pins for 2 spare power circuits, and a USB programming cable for easy setup.
