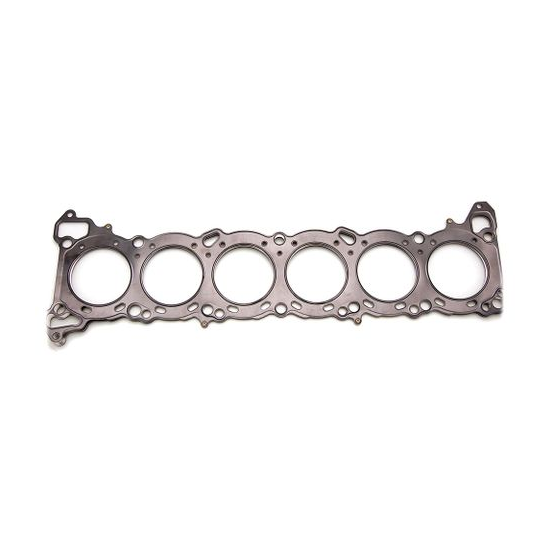

Cometic RB20 Multi Layer Steel Head Gasket
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Available in:
- Bore Size: 80mm
- Material: MLS
- Thickness: 0.051"
Cometic Gasket, Inc., is a leading worldwide supplier of shelf stock, custom and short-run gaskets for the performance aftermarket, original equipment and motorsports industries. gaskets to customers worldwide.

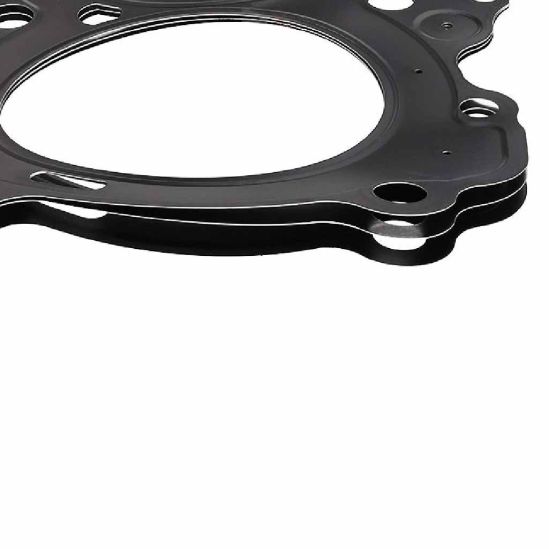

MLS (Multi Layer Steel)
The Cometic MLS gasket is comprised of three to five layers of Stainless Steel. Cometic uses Stainless steel for increased strength, its ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a Viton rubber material designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 250C or 482F.
The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for any kind of head and block combination. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion.
| Product Name | Cometic RB20 Multi Layer Steel Head Gasket |
|---|---|
| Brands | Cometic |
| Engine | RB20 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What surface finish is required for an MLS head gasket?
MLS gaskets require a smooth, consistent RA surface finish on both the block and head. Your machinist should follow the gasket manufacturer’s recommended RA values.
Can I reuse head studs or bolts?
Quality studs may be reused if undamaged. Torque-to-yield bolts are usually single-use. Follow the fastener manufacturer’s recommendations.
What is the recommended bore size for the Cometic RB20 MLS head gasket?
The Cometic RB20 MLS head gasket is designed for a bore size of 80mm. Ensure that your engine's bore matches this specification for optimal sealing performance.
What thickness is the Cometic RB20 MLS head gasket?
This head gasket has a thickness of 0.051 inches. It's important to consider this thickness when calculating your engine's compression ratio and ensuring proper clearance.
What materials are used in the Cometic RB20 MLS head gasket?
The gasket is made from multiple layers of stainless steel, providing increased strength and corrosion resistance. It features embossed outer layers coated with Viton rubber for enhanced sealing capabilities.
What temperature can the Viton coating withstand on the Cometic RB20 MLS head gasket?
The Viton coating on this head gasket is heat resistant up to 250°C (482°F), making it suitable for high-performance applications where elevated temperatures are common.
How does the design of the Cometic RB20 MLS head gasket help with torque load distribution?
The MLS gasket design promotes an even torque load across the sealing surface, which helps to reduce bore distortion and ensures a reliable seal under varying load conditions.
